型 号 Model： |
FT-150B-C002 |
|
产品名称 Product Name: |
12V 150kg.cm180°舵机/12V 150kg.cm 180 Degree Servo |
| 存储温度 Storage Temperature Range | -40℃～80℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A: 64mm B: 33mm C: 72mm |
|
重量 Weight: |
401.5g±3g |
| 齿轮类型 Gear type: |
钢 Steel |
| 机构极限角度 Limit angle: |
200° |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |

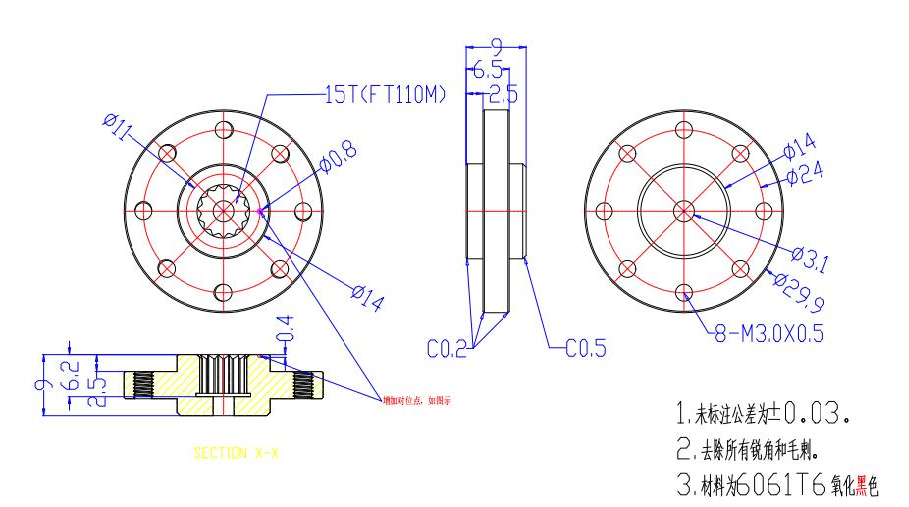

| 出力轴 Horn gear spline: |
15T |
| 外壳 Case: | Aluminum |
| 舵机线 Connector wire: | 50±1CM(黑红+黑红白） |
| 马达 Motor: |
Brushless Motor |
|
工作电压Operating Voltage Range: |
10V-16V |
| 静态电流Idle current (atstopped) |
45mA@14.8V |
|
空载速度 No load speed: |
0.204sec/60°(49RPM)@14.8V |
| 空载电流 Runnig current(at no load) : | 480mA@14.8V |
|
堵转扭矩 Peak stall torque: |
220kg.cm@14.8V |
|
额定扭矩 Rated torque: |
73kg.cm@14.8V |
| 堵转电流 Stall current: | 4100mA@14.8V |
| 控制信号Command si gnal | Pulse width modulation |
| 控制系统类型 Control System Type | Digital comparator |
| 脉冲宽度范围Pulse width range | 600~2400 μ sec |
| 中立位置Stop position | 1500 μ sec |
| 操作角度Running degree |
180±2°(at 600→2400μsec) |
| 死区宽度Dead band width | ≤4 μ sec |
| 旋转方向Rotating direction | 逆时针 Counterclockwi se (在600→2400 μ sec) |
| 详细规格书下载Download detailed specifications: | |

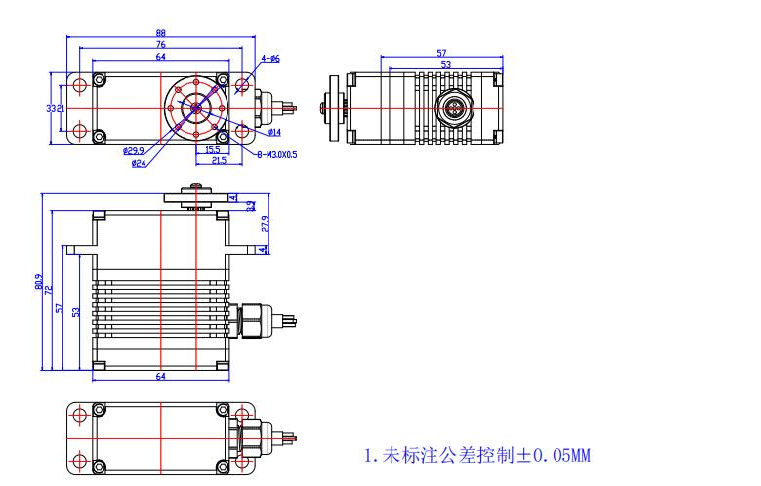

| 外形图 The Drawings: |
