8.4V 50KG 180 Degree Servo

型 号 Model:

FT-955B-C001

产品名称 Product Name:

8.4V 50kg.cm180°舵机/8.4V 50KG 180 Degree  Servo

存储温度 Storage Temperature Range -30℃~80℃
运行温度 Operating Temperature Range: -20℃~60℃

尺寸 Size:

A:43.7mm B:22.3mm C: 39.8mm

重量 Weight:

95.1± 1g

齿轮类型 Gear type:

钢 Steel

机构极限角度 Limit angle:

NO limit

轴承 Bearing: 滚珠轴承 Ball bearings
出力轴 Horn gear spline:

25T/5.9mm

减速比Gear Ratio: 1/451
外壳 Case: Alumi num
舵机线 Connector wire: 35CM
马达 Motor:

Brushless Motor

工作电压Operating Voltage Range:

4-8.4V

静态电流Idle current (atstopped)  35mA@8.4V

空载速度 No load speed:

0.119sec/60°(84RPM)@8.4V

空载电流 Runnig current(at no load) : 360mA@8.4V

堵转扭矩 Peak stall torque:

50kg.cm@8.4V

额定扭矩 Rated torque:

16kg.cm@8.4V

控制信号Command signal Pulse width modulation
控制系统类型 Control System Type Digital comparator
脉冲宽度范围Pulse width range 500~2500 μ sec
中立位置Stop position 1500 μ sec
操作角度Running degree

180±5°(at 500→2500μsec)

死区宽度Dead band width ≤4 μ sec
旋转方向Rotating direction 顺时针 Clockwise(在1500→2000 μsec)
详细规格书下载Download detailed specifications:

FT-955B-C001-20240130.pdf

电子保护 Electronic Protection

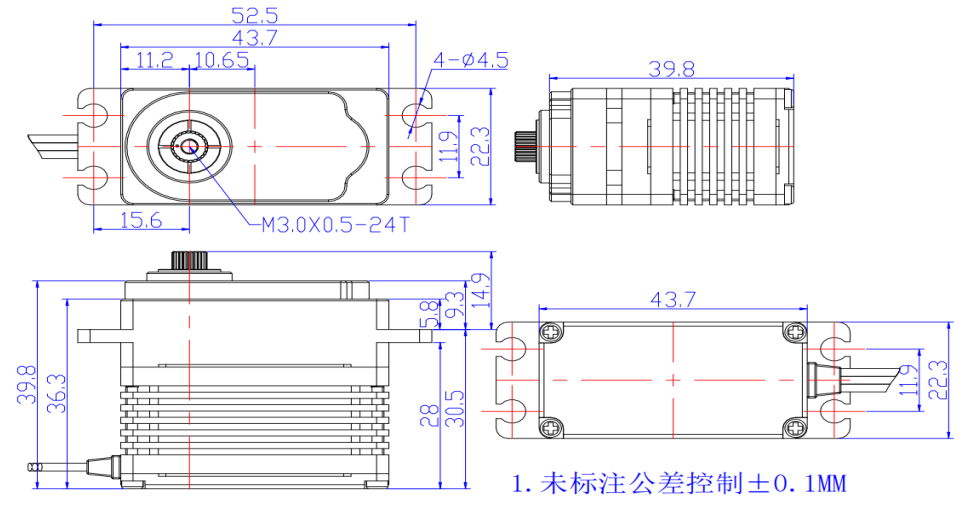

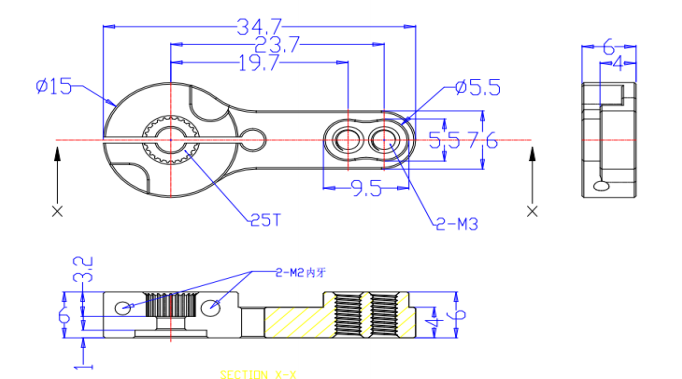

外形图 The Drawings:
