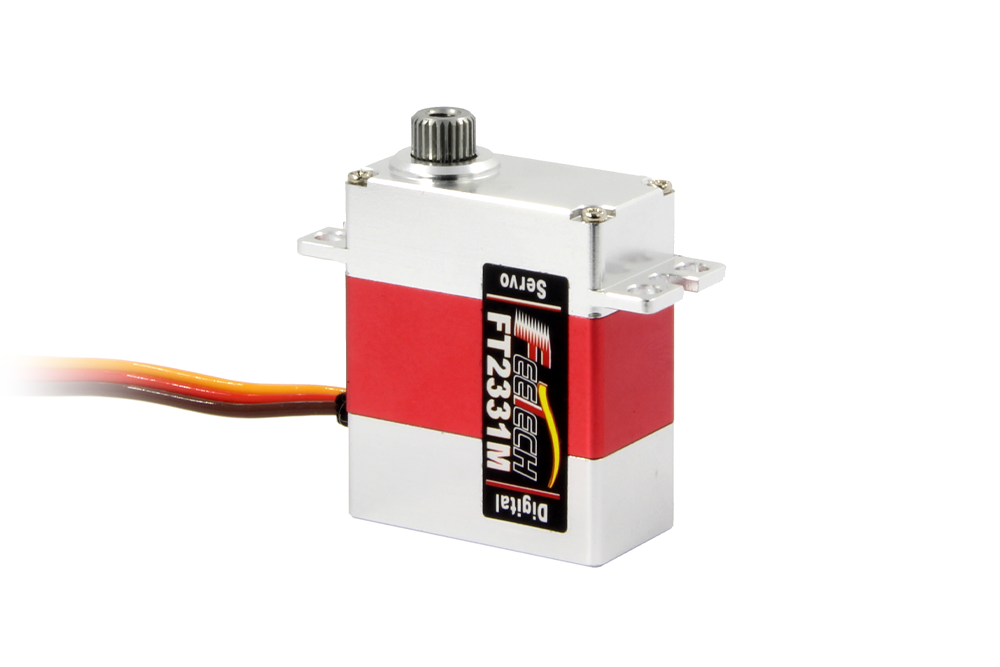

3.5kg digital servo FT2331M

型 号 Model:

FT2331M

产品名称 Product Name:

6V 4.5公斤数码舵机/6V 4. 5kg- -cm Digital Servo

存储温度 Storage Temperature Range -30℃~80℃
运行温度 Operating Temperature Range: -15℃~70℃

尺寸 Size:

A:23mm B:12mm C:27.5mm .

重量 Weight:

20g 土0.2 (O. 71oz)

齿轮类型 Gear type: Metal Gear
机构极限角度 Limit angle:

No limit

轴承 Bearing: 2 Ball bearings
出力轴 Horn gear spline: 25T(od 4.92mm)
摆臂 Horn type: Plastic,POM
外壳 Case: Aluminium
舵机线 Connector wire: 150mm ±5 mm
马达 Motor: Coreless motor

工作电压Operating Voltage Range:

4.8-6V

静态电流Idle current (at stopped) . 4.8mA-6.0mA

空载速度 No load speed:

0. 07 sec/ 60°@6V

空载电流 Runnig current(at no load) : 150 mA@6V

堵转扭矩 Peak stall torque:

3.5kg.cm@6V

额定扭矩 Rated torque:

1.16kg.cm@6V

堵转电流 Stall current: 1000mA@6V
控制信号Command si gnal Pulse width modification
放大器类型Amplifier type Digital Controller
脉冲宽度范围Pulse width range 900~2100usec
停止位置Stop position 1500  μsec
旋转角度Running degree 240° (at 500→2500μsec)
死区宽度Dead band width 2 μsec
旋转方向Rotating direction Counterclockwise (when 1000~ 2000 μsec)
详细规格书下载Download detailed specifications:

FT2331M-C001规格书-20210714.pdf

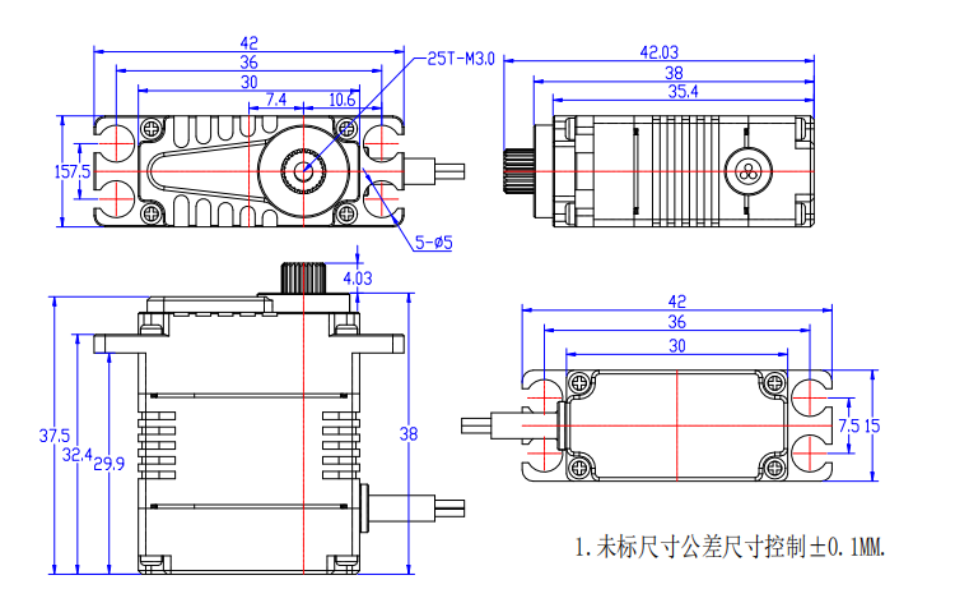

外形图 The Drawings:
