型 号 Model： |
FT-2815-C001 |
|
产品名称 Product Name: |

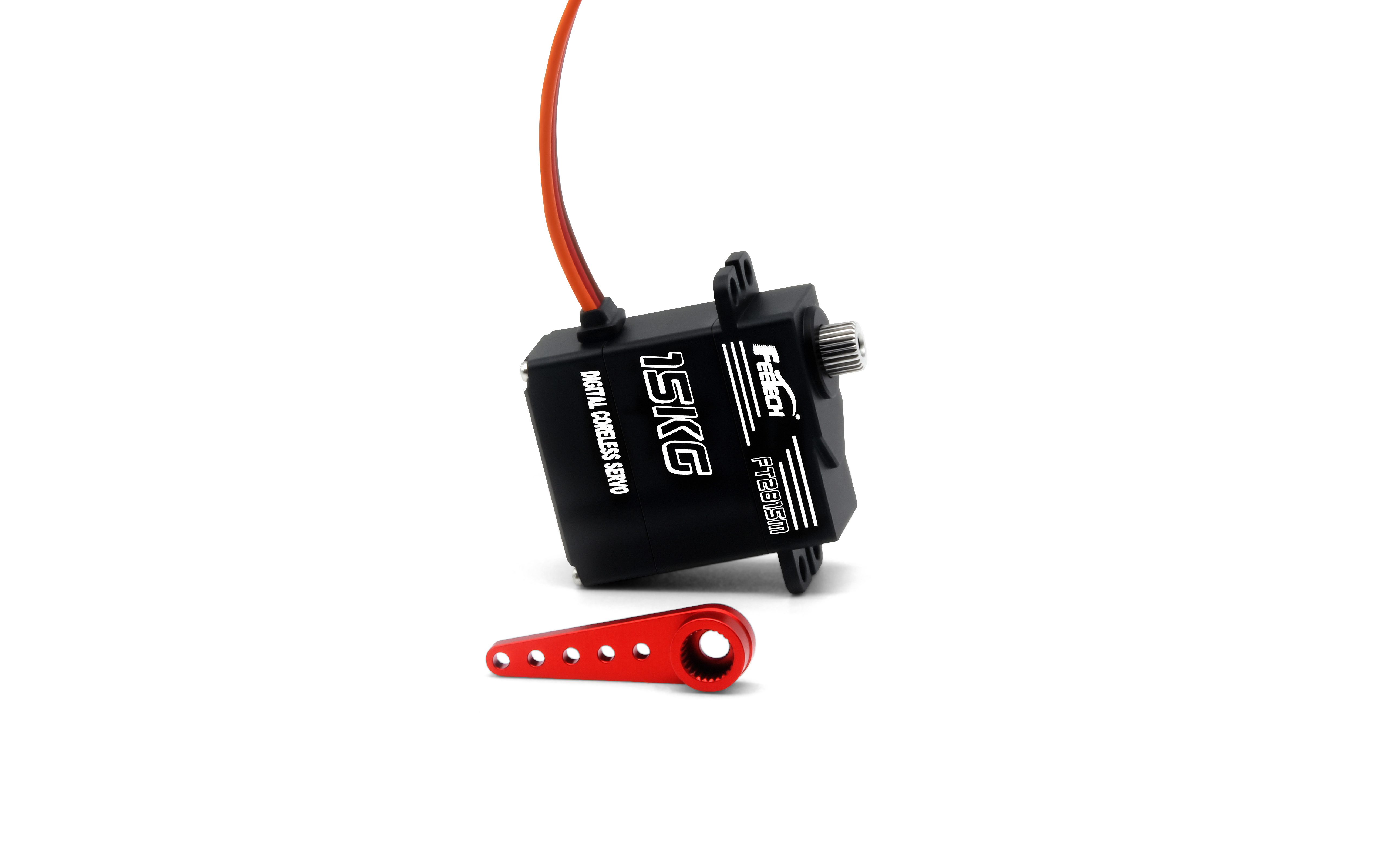

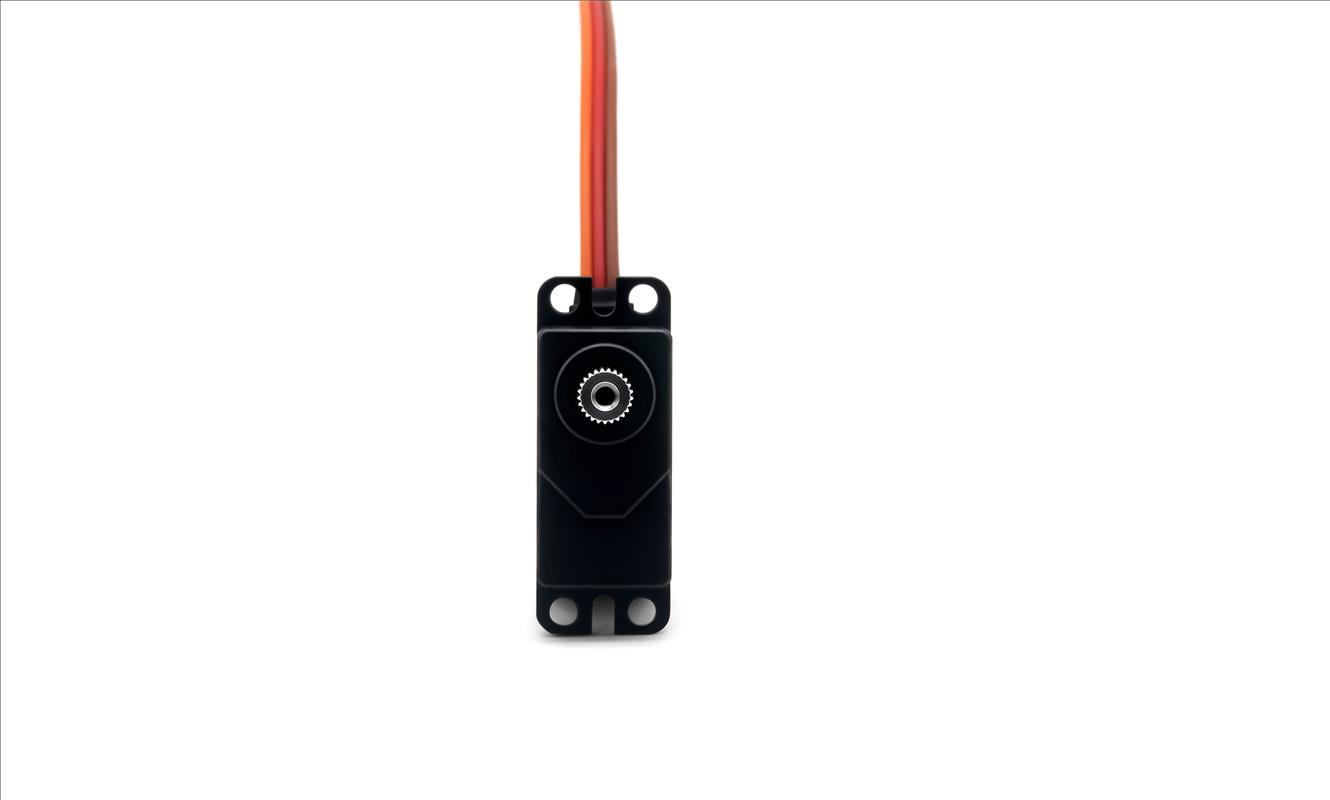

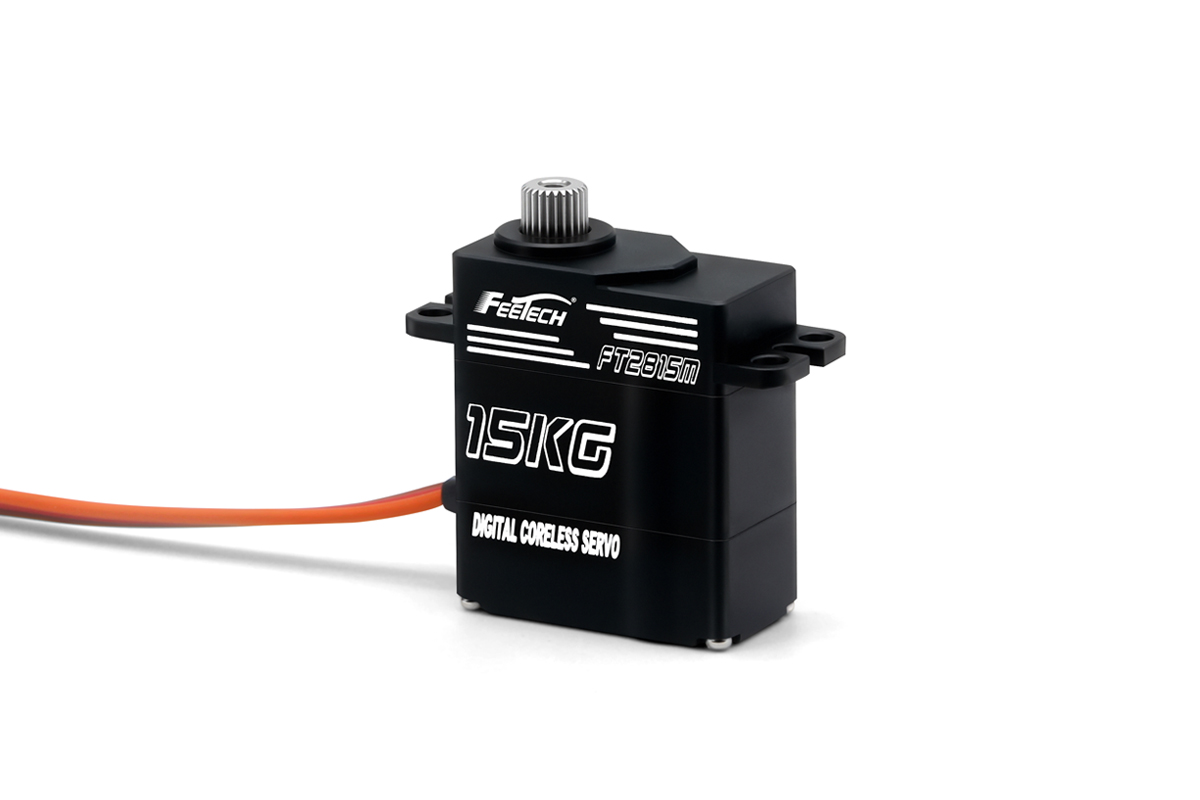

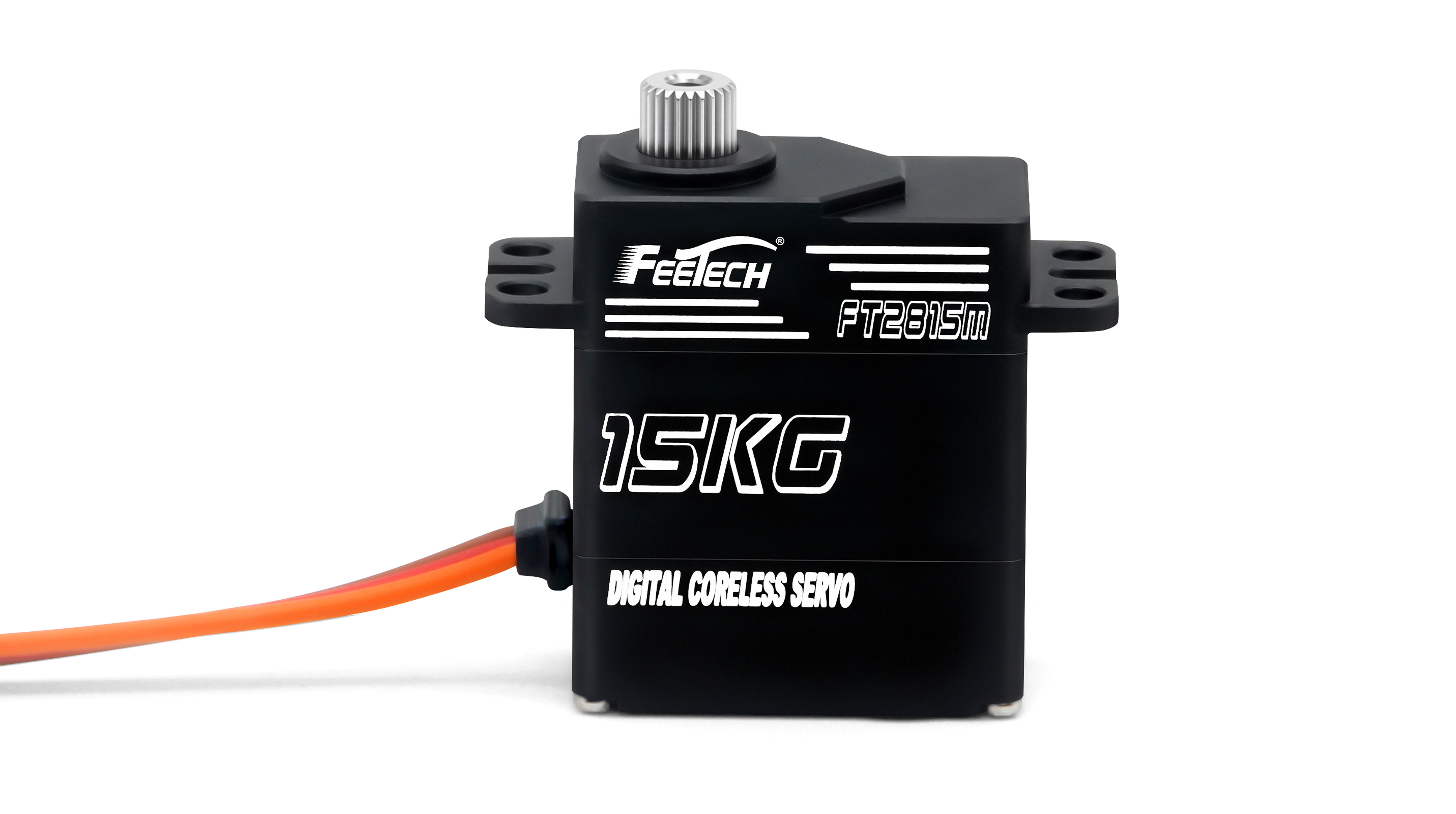

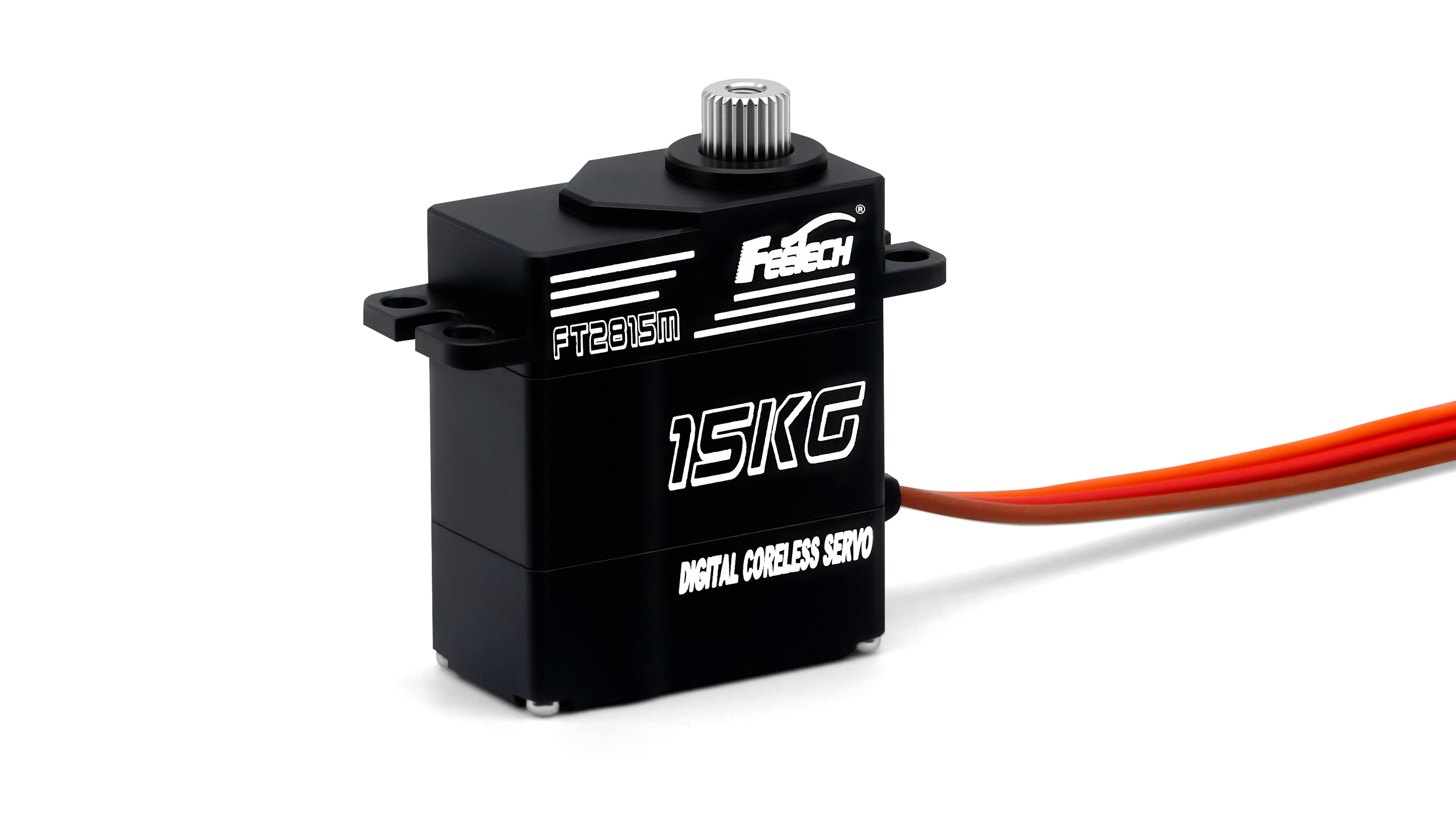

7.4V 15kg.cm数码180度铝壳钢齿轮空芯杯舵机 |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A:23mm B:12mm C:27.5mm |
|
重量 Weight: |
22.5± 2g |
| 齿轮类型 Gear type: | Metal Gear |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: | 25T/4.95mm |
| 外壳 Case: | Aluminum |
| 舵机线 Connector wire: | 25±0.5CM |
| 马达 Motor: | Coreless Motor |
|
工作电压Operating Voltage Range: |
4.8V-8.4V |
| 静态电流Idle current (at stopped) . | 6mA@8.4V |
|
空载速度 No load speed: |
0.065sec/60°(153RPM)@8.4V |
| 空载电流 Runnig current(at no load) : | 250mA@8.4V |
|
堵转扭矩 Peak stall torque: |
19.5kg.cm@8.4V |
|
额定扭矩 Rated torque: |
6.5kg.cm@8.4V |
| 堵转电流 Stall current: | 1300mA@8.4V |
| 控制信号Command si gnal | Pulse width modification |
| 控制系统类型Control System Type | Digital Comparator |
| 脉冲宽度范围Pulse width range | 500→2500 μsec |
| 中立位置 Neutral Position | 1500 μsec |
| 旋转角度Running degree |
180±5°(at 500→2500μsec) |
| 死区宽度Dead band width | ≤8 μsec |
| 旋转方向Rotating direction | 逆时针 Counterclockwise(在1500→2000 μsec) |
| 详细规格书下载Download detailed specifications: | |
| 外形图 The Drawings: |
