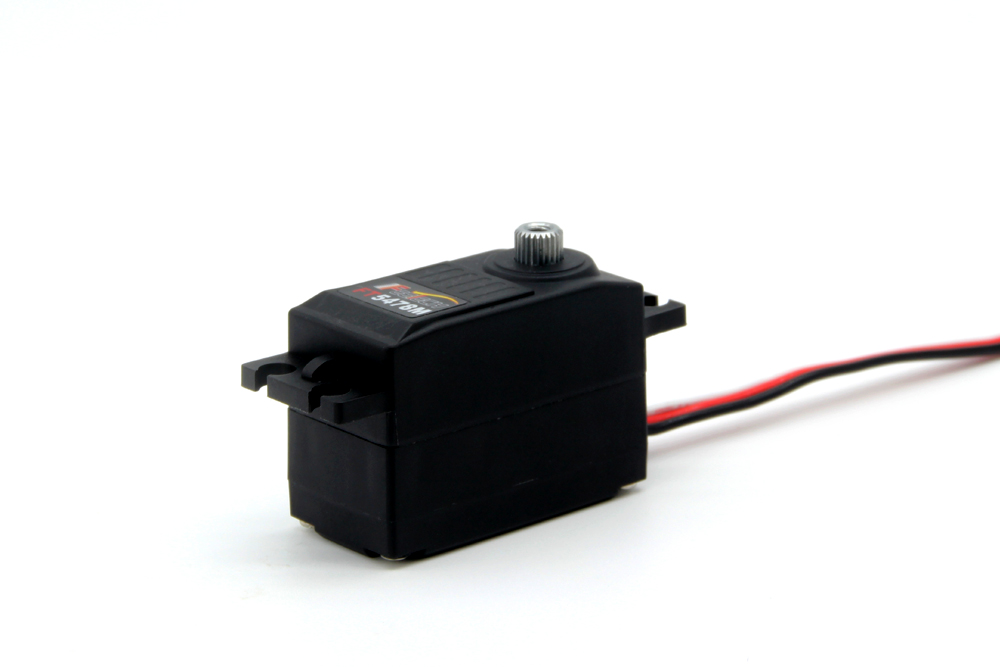

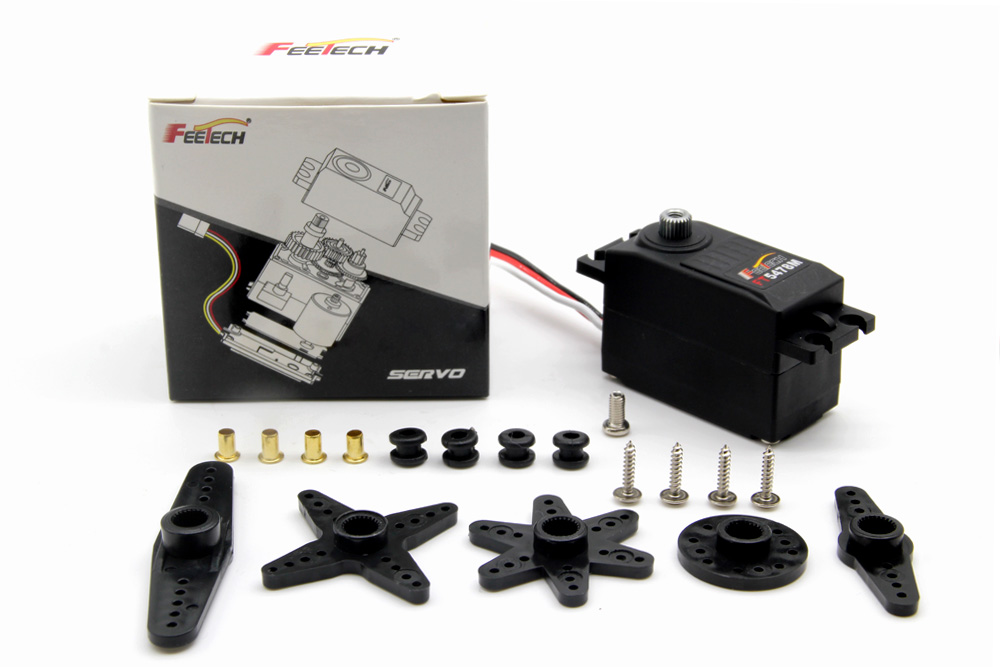

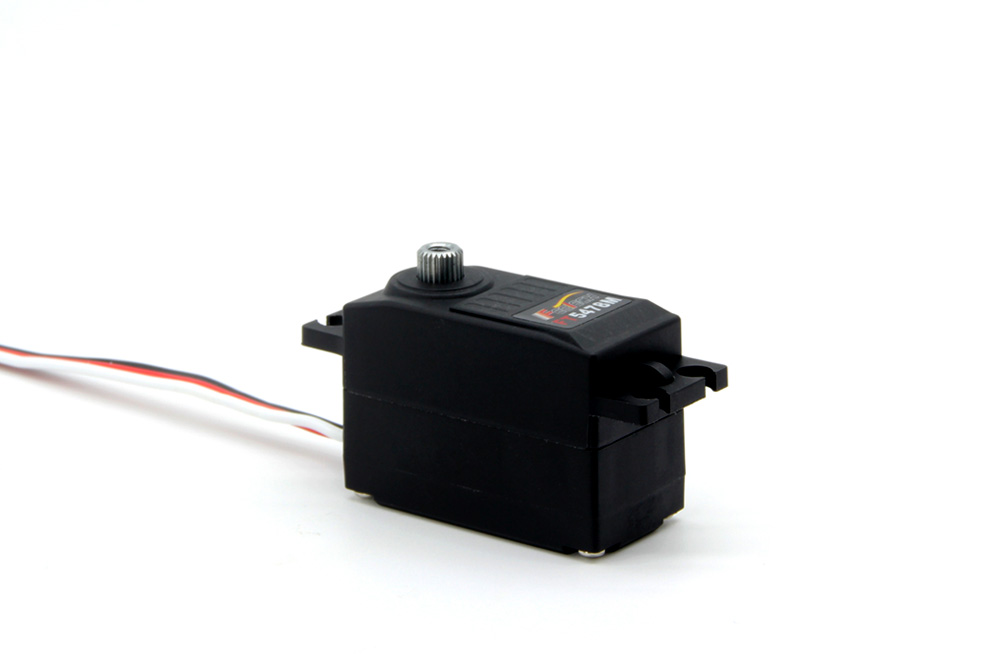

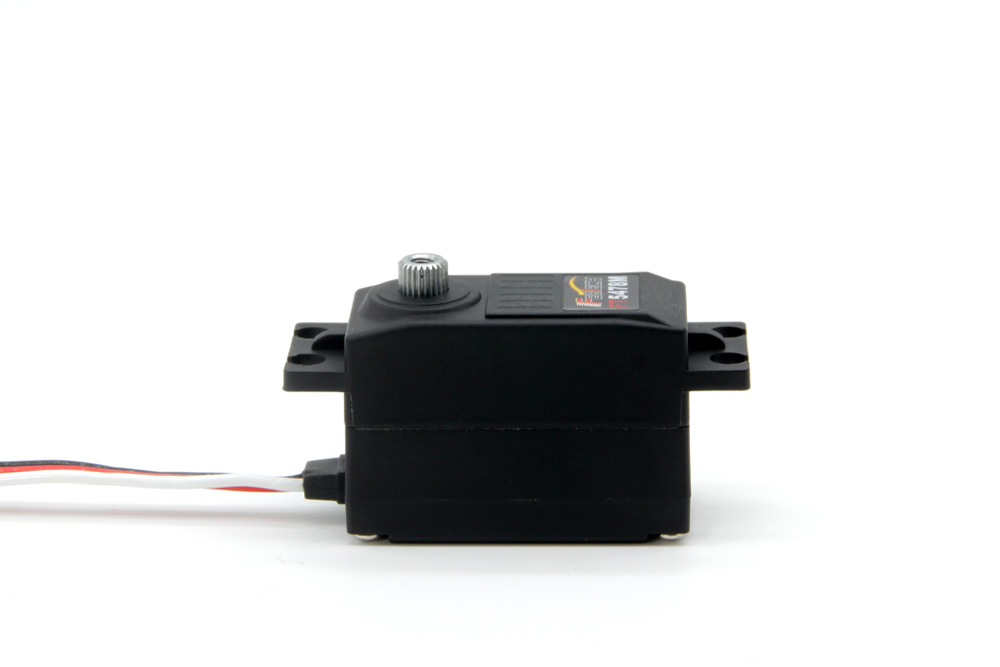

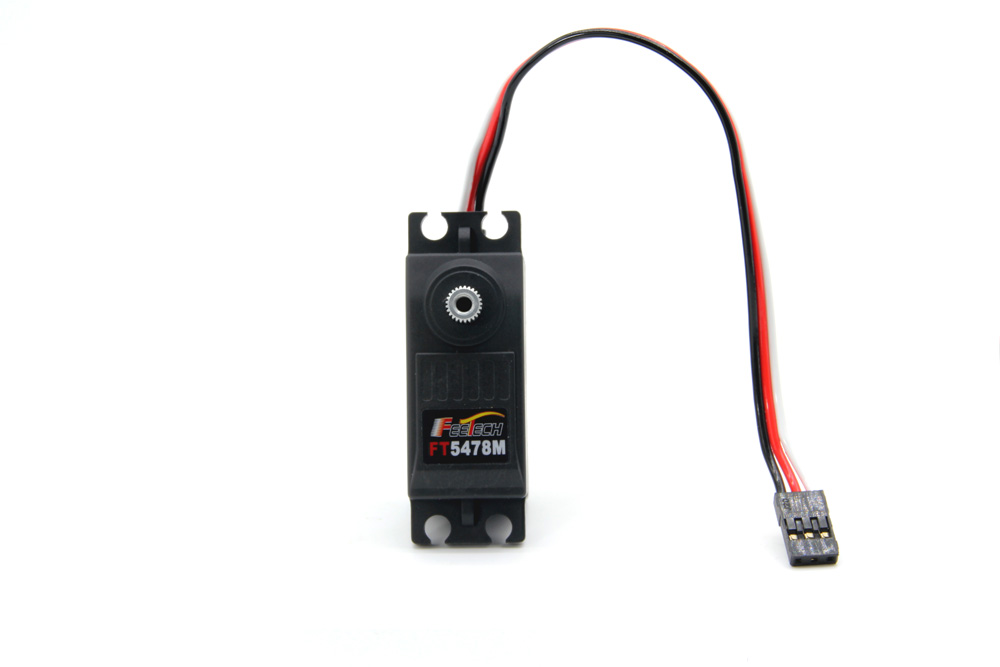

7.4V 20kg.cm Palstic Case 180°Metal Gear Core Motor Servo

型 号 Model:

FT-5478-C001

产品名称 Product Name:

7.4V 20kg.cm180°舵机/7.4V 20KG 180 Degree Copper Gear Servo

存储温度 Storage Temperature Range -30℃~80℃
运行温度 Operating Temperature Range: -20℃~60℃

尺寸 Size:

A:40.6mm B:20mm C: 26.6mm

重量 Weight:

41.6± 2g

齿轮类型 Gear type:

Metal

机构极限角度 Limit angle:

No limit

轴承 Bearing: 滚珠轴承 Ball bearings
出力轴 Horn gear spline:

25T/5.9mm

减速比Gear Ratio: 1/258
外壳 Case: PA+GF
舵机线 Connector wire: 14±0.5CM
马达 Motor:

Core Motor

工作电压Operating Voltage Range:

5-9V

静态电流Idle current (atstopped)  20mA@8.4V

空载速度 No load speed:

0.105sec/60°(95RPM)@8.4V

空载电流 Runnig current(at no load) : 520mA@8.4V

堵转扭矩 Peak stall torque:

22.5kg.cm@8.4V

额定扭矩 Rated torque:

5.6kg.cm@8.4V

堵转电流 Stall current: 3.3A@8.4V
控制信号Command si gnal Pulse width modification
控制系统类型 Control System Type Digital comparator
脉冲宽度范围Pulse width range 500~2500 μ sec
中立位置Stop position 1500 μ sec
操作角度Running degree

 180°± 5°(at 500→2500μsec)

死区宽度Dead band width ≤4 μ sec
旋转方向Rotating direction 逆时针 Counterclockwi se (在1500→2000 μ sec)
详细规格书下载Download detailed specifications:

FT5478M规格书-C001-20240718.pdf

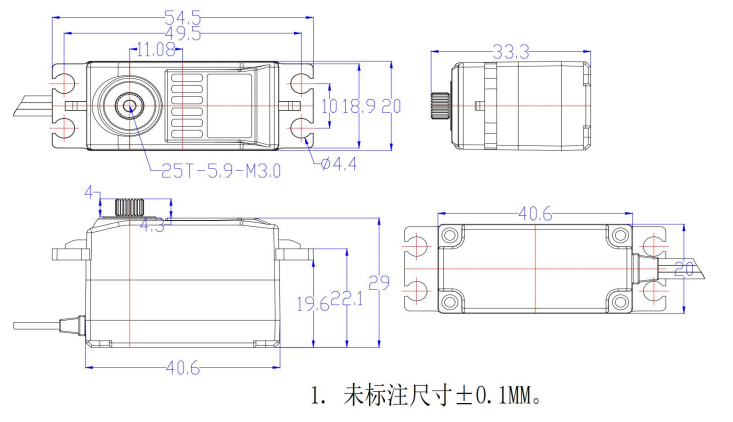

外形图 The Drawings:
