型 号 Model： |
FB5118M |
|
产品名称 Product Name: |
7.4V 17公斤数字舵机/7.4V 17kg.cm Digital Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：40mm B：20.1mm C：38.3mm D：54mm |
|
重量 Weight: |
65g |
| 齿轮类型 Gear type: | Steel Gear |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: | 2 Ball bearings |
| 出力轴 Horn gear spline: | 25T(5.9mm) |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | Nylon & Fiberglass |
| 舵机线 Connector wire: | 300mm ±5 mm(Black ,Red,white and Orange) |
| 马达 Motor: | Metal brush motor |
|
工作电压Operating Voltage Range: |
6-7.4V |
| 静态电流 Idle current(at stopped) | 5mA |
|
空载速度 No load speed: |
62RPM@6V |
| 空载电流 Runnig current(at no load) : | 150 mA @6V |
|
堵转扭矩 Peak stall torque: |
17.5kg.cm@6V |
|
额定扭矩 Rated torque: |
6kg.cm@6V |
| 堵转电流 Stall current: | 1800mA@6V |
| 旋转角度 Running degree: |
300°（±5°）(when 500～2500 µsec) |
| 旋转方向 Rotating direction |
Cockwise (when 1000～2000 µsec) |
| 反馈电压 Feedback Voltage | 900usec-2.60V/1500usec-1.66V/2100us-0.72V |
| 详细规格书下载Download detailed specifications: | |

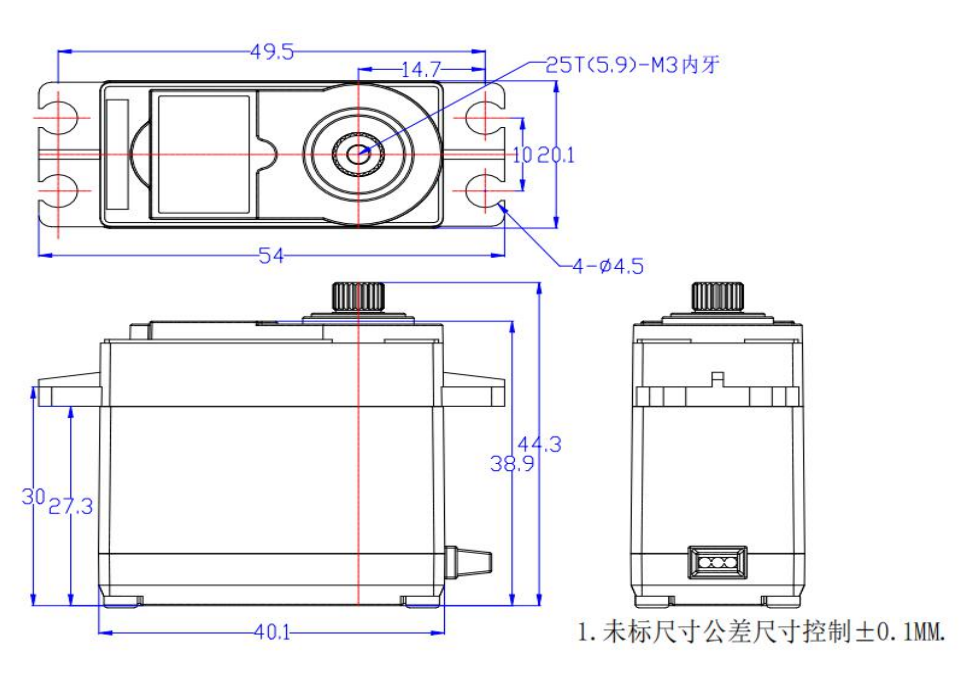

| 外形图 The Drawings: |
