型 号 Model： |
FT-3322-C001 |
|
产品名称 Product Name: |

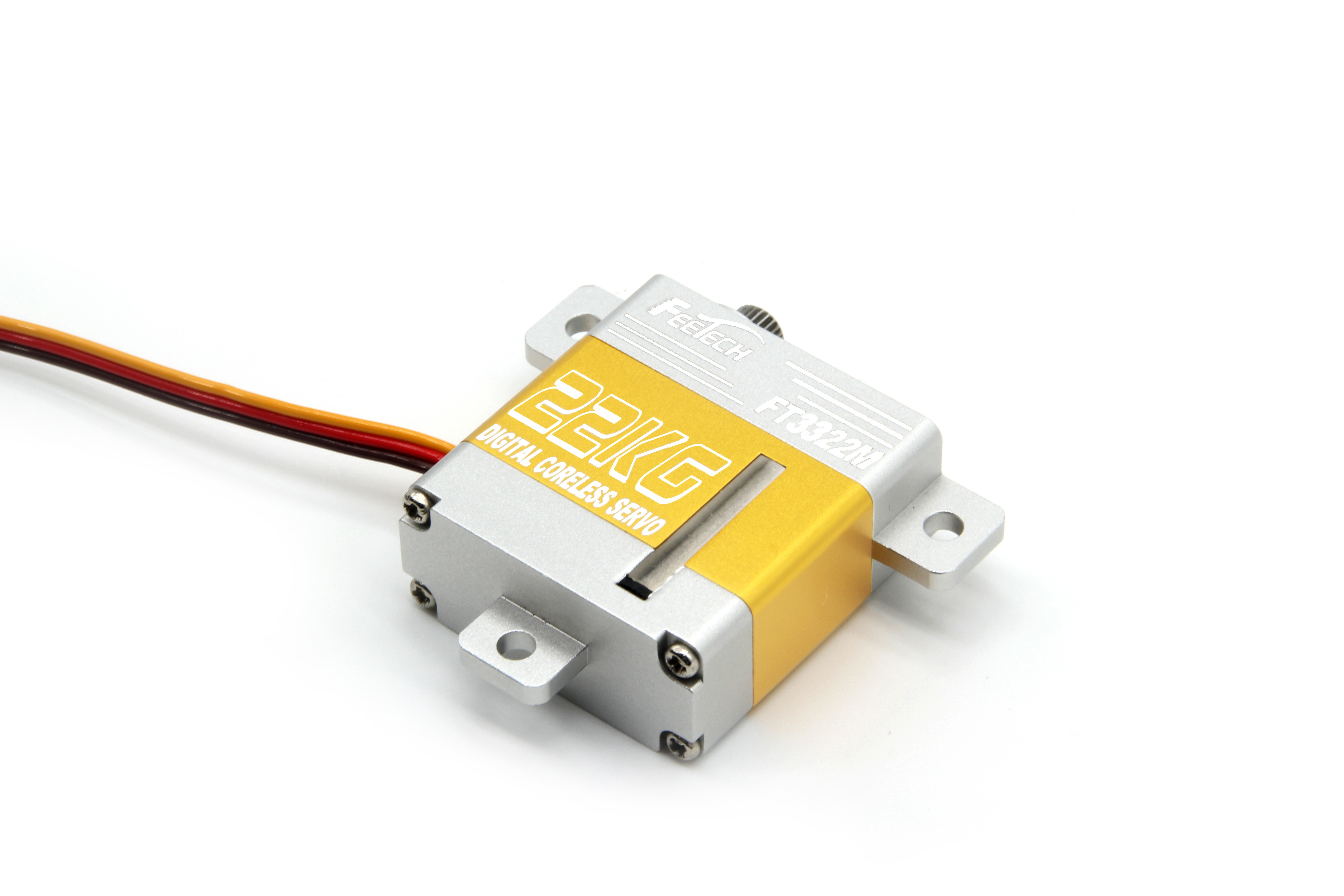

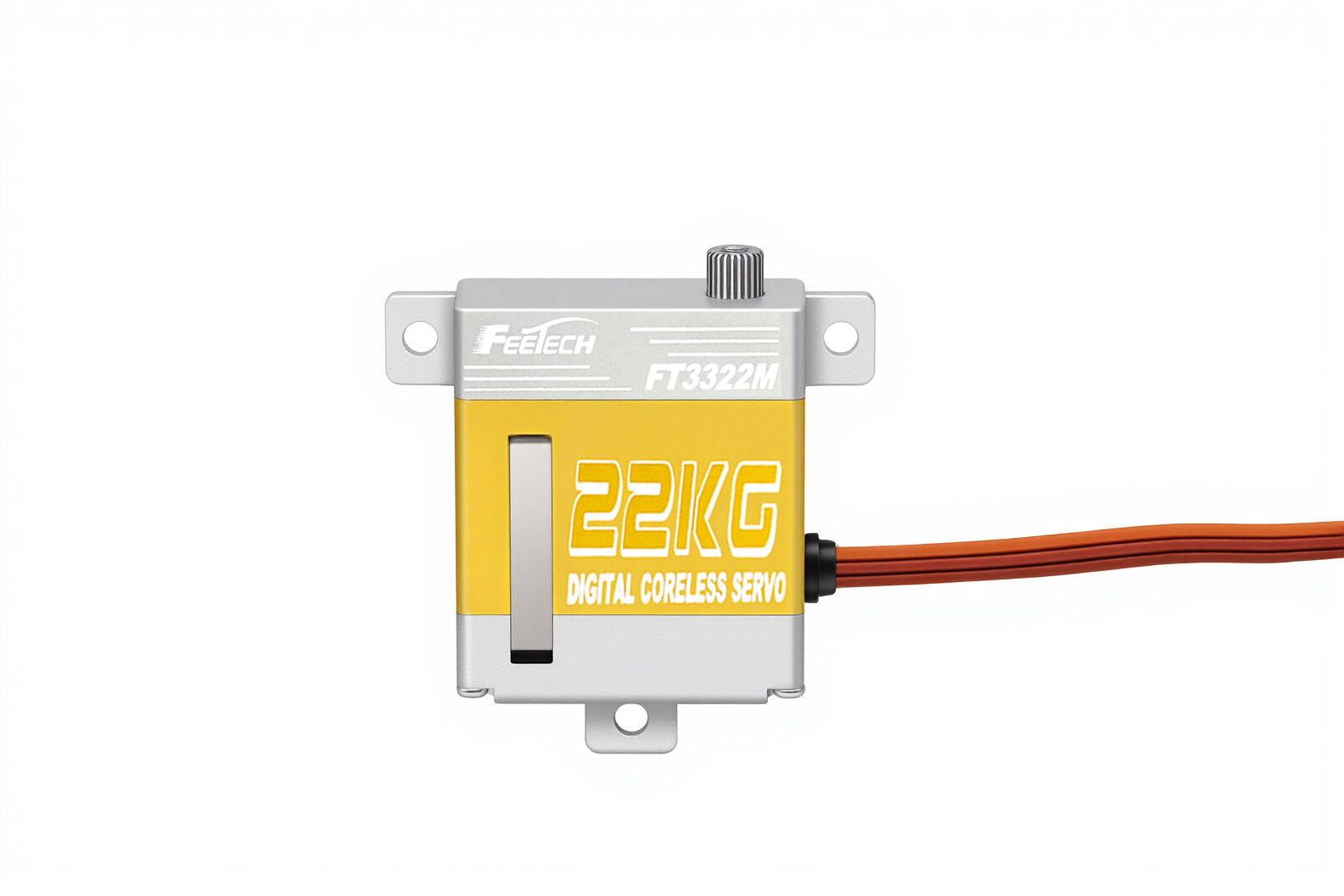

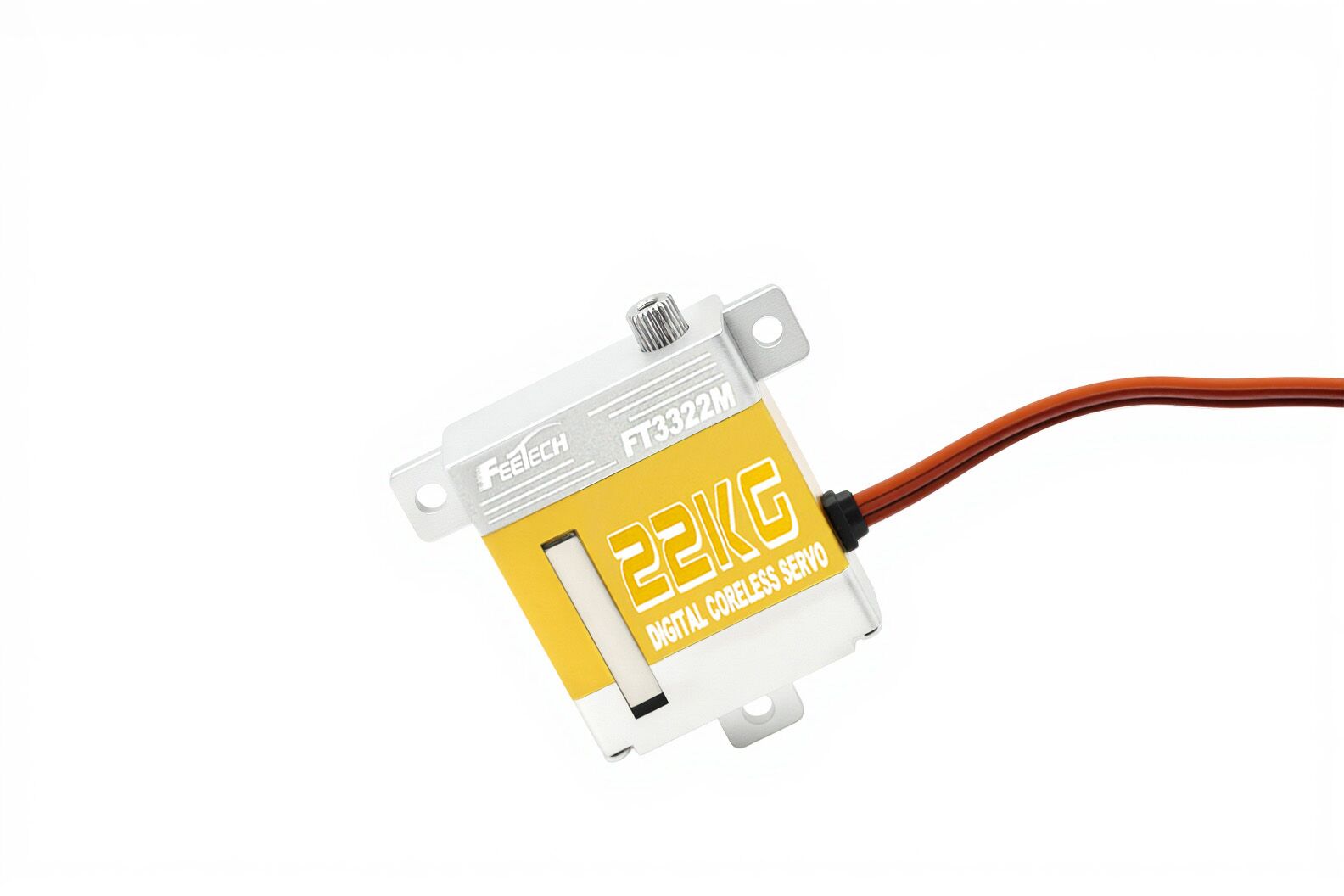

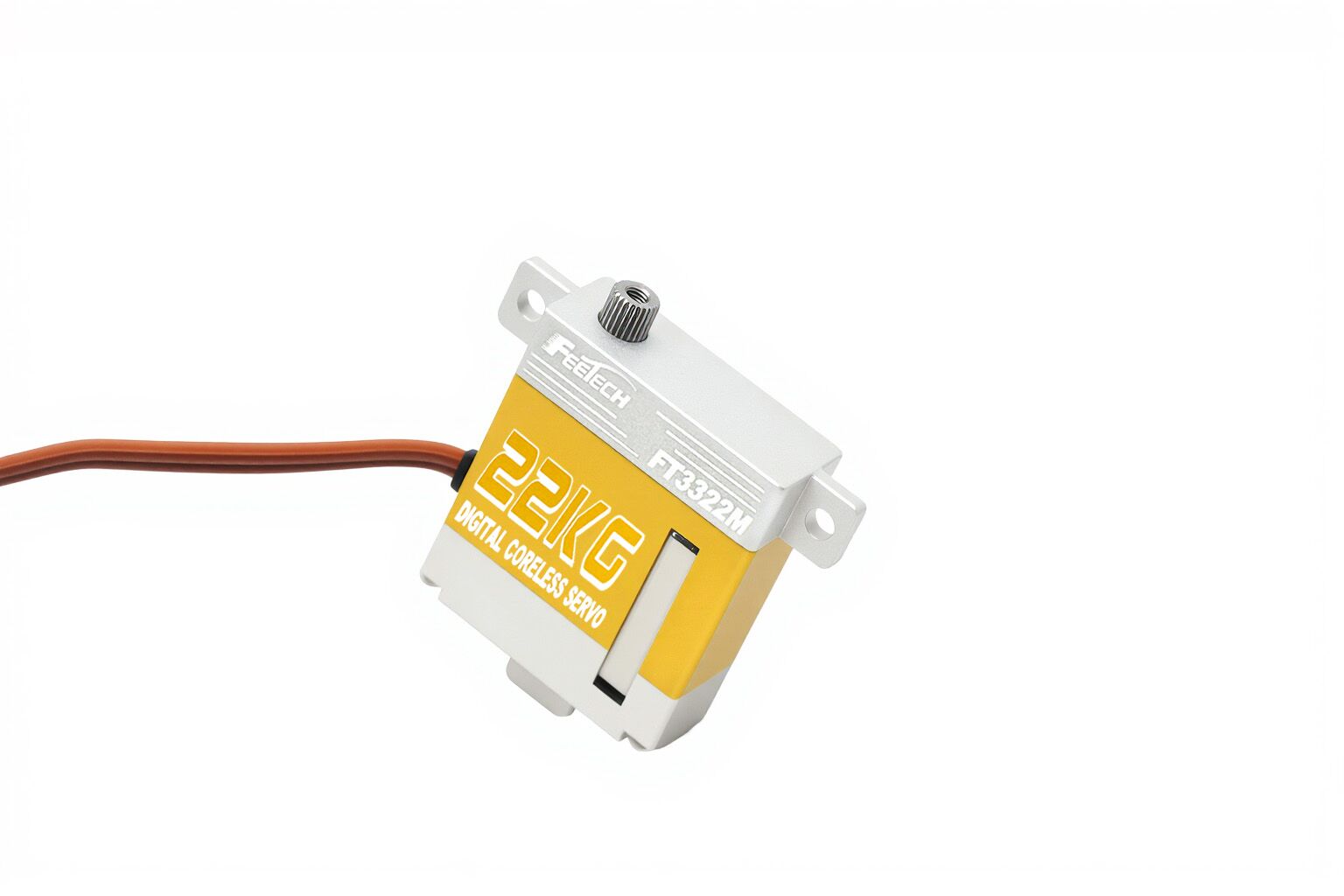

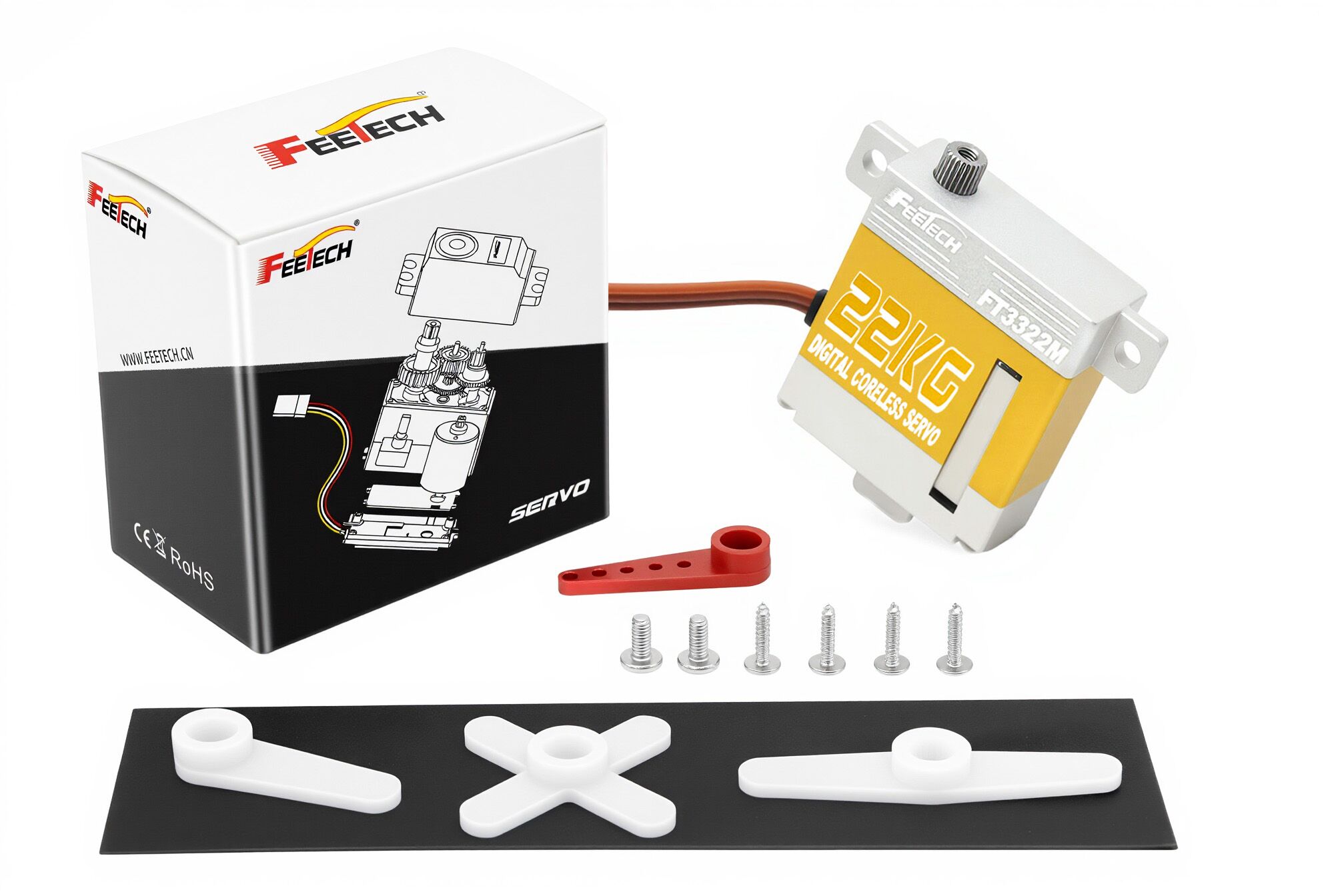

7.4V 22kg.cm数码180度舵机/7.4V 22kg.cm 180 Degree Digital Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -20℃～60℃ |
|
尺寸 Size: |
A: 30mm B: 12mm C: 35mm |
|
重量 Weight: |
32.6±2g |
| 齿轮类型 Gear type: | Metal Gear |
| 机构极限角度 Limit angle: |
No Limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: | 25T/4.95mm |
| 外壳 Case: | Aluminium |
| 舵机线 Connector wire: | 25±0.5CM |
| 马达 Motor: | Coreless Motor |
|
工作电压Operating Voltage Range: |
4.8V-7.4V |
| 静态电流Idle current (at stopped) . | 6mA@7.4V |
|
空载速度 No load speed: |
0.093sec/60°(108RPM)@7.4V |
| 空载电流 Runnig current(at no load) : | 140mA@7.4V |
|
堵转扭矩 Peak stall torque: |
22.9kg.cm@7.4V |
|
额定扭矩 Rated torque: |
7.6kg.cm@7.4V |
| 控制信号Command signal | Pulse width modification |
| 放大器类型Amplifier type | Digital Comparator |
| 脉冲宽度范围Pulse width range | 500→2500 μsec |
| 中位位置Stop position | 1500 μsec |
| 旋转角度Running degree |
180±5°(at 500→2500μsec) |
| 死区宽度Dead band width | ≤4 μsec |
| 旋转方向Rotating direction | 逆时针 Counterclockwise(在1500→2000 μsec) |
| 详细规格书下载Download detailed specifications: | |
| 外形图 The Drawings: |
