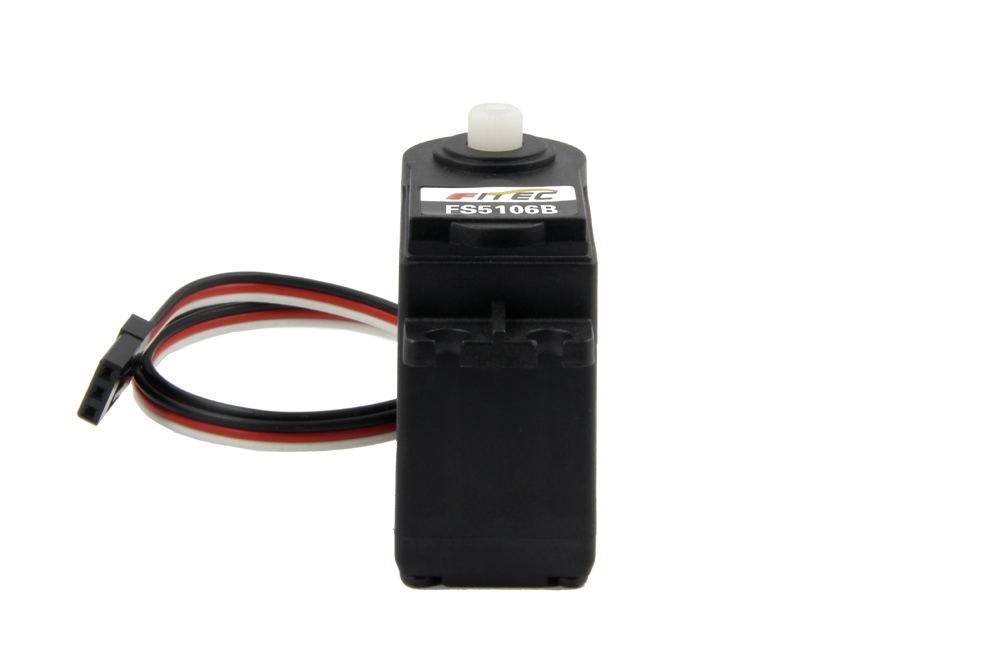

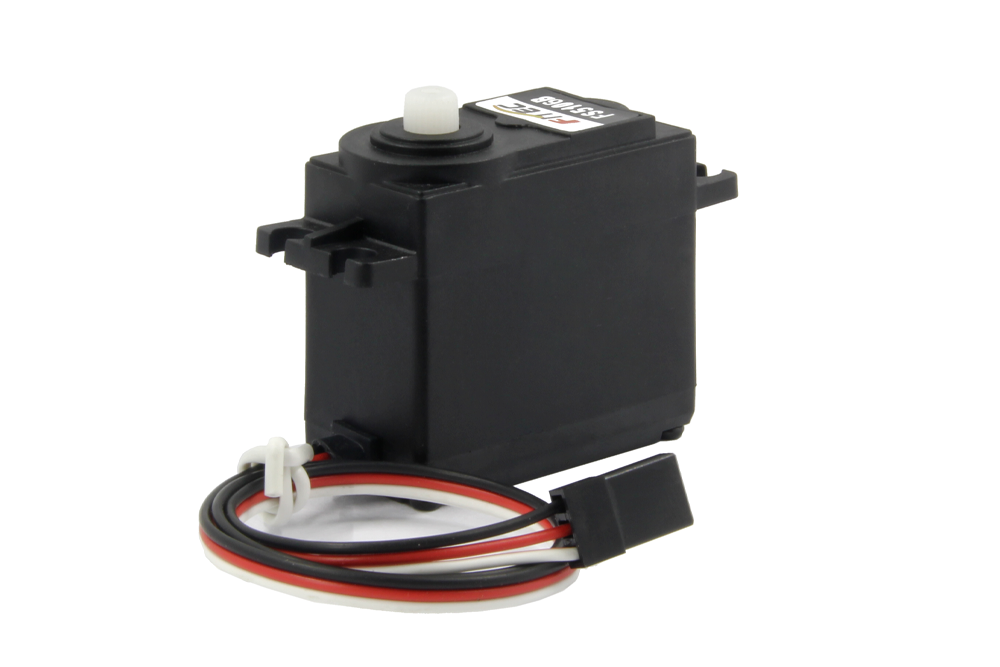

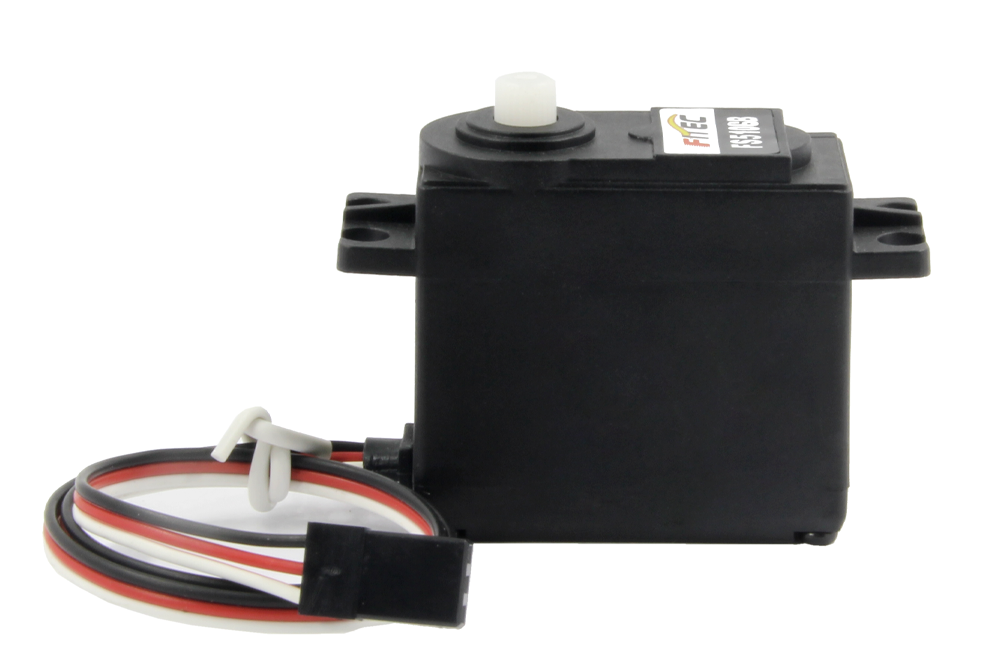

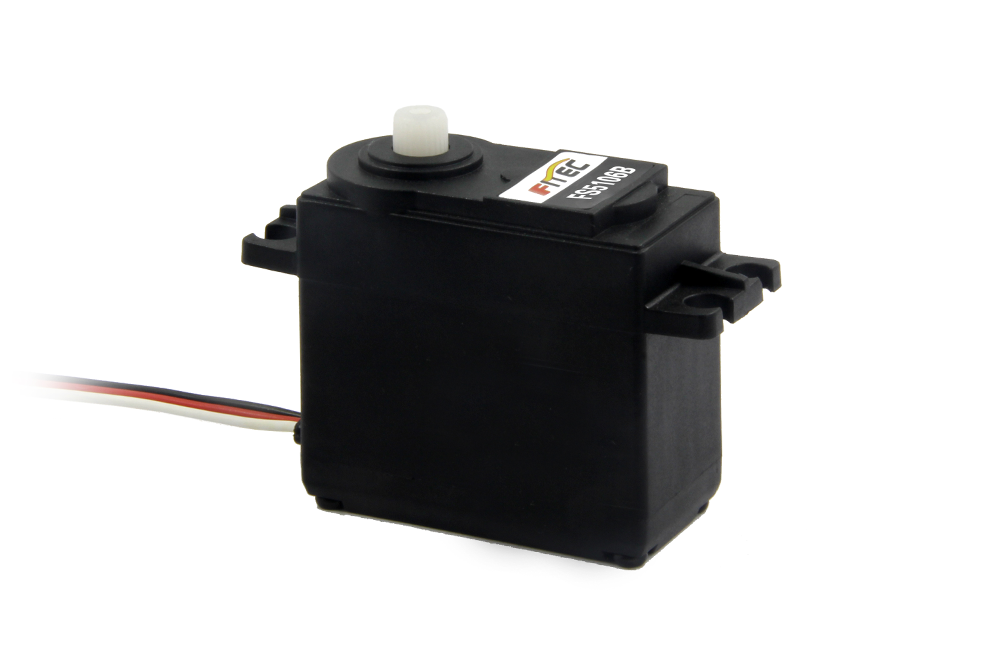

型 号 Model： |
FS5106B |
|
产品名称 Product Name: |
6V 6公斤模拟舵机/6V 6kg. cm Analog Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：40.8mm B：20.1mm C：38mm D: 49.5mm |
|
重量 Weight: |
40g 士0.2 (1.41oz) |
| 齿轮类型 Gear type: | Plastic Gear(Nylon & POM ) |
| 机构极限角度 Limit angle: |
200°士5° |
| 轴承 Bearing: | 2 Ball bearings |
| 出力轴 Horn gear spline: | 25T |

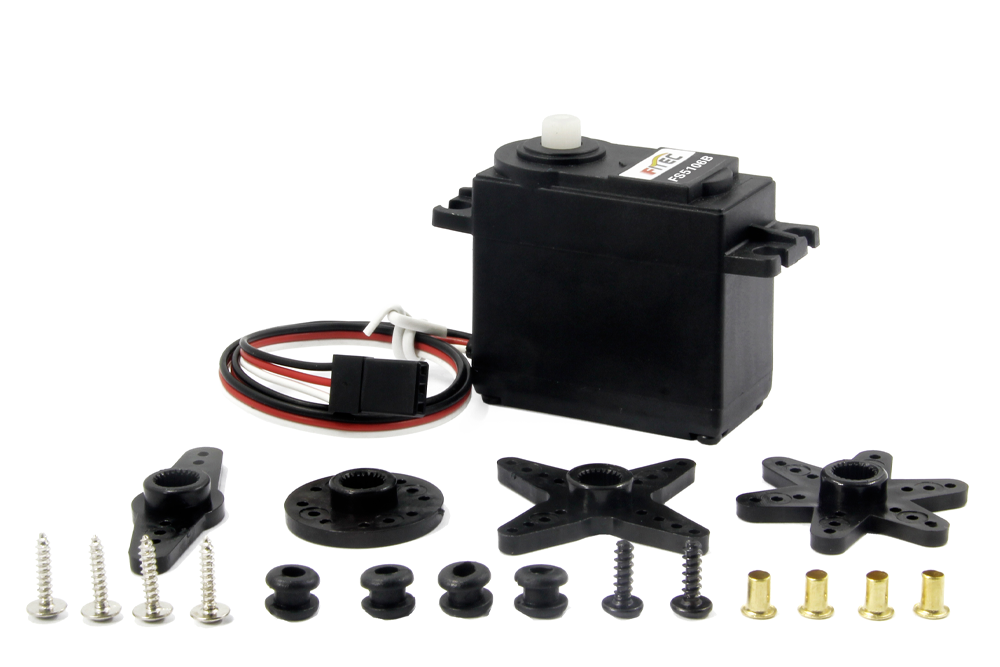

| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | Nylon & Fiberglass |
| 舵机线 Connector wire: | 300mm ±5 mm |
| 马达 Motor: | Metal brush motor |
|
工作电压Operating Voltage Range: |
4.8-6V |
|
空载速度 No load speed: |
0.16sec/60°@6V |
| 空载电流 Runnig current(at no load) : | 190 mA@6V |
|
堵转扭矩 Peak stall torque: |
6kg.cm@6V |
|
额定扭矩 Rated torque: |
2kg.cm@6V |
| 堵转电流 Stall current: | 1100mA@6V |
| 控制信号 Command signal: | Pulse width modification |
| 放大器类型Amplifier type . | Analog comparator . |
| 脉冲宽度范围Pulsewidthwidth | 700~ 2300usec |
| 中立位置Neutral position | 1500 usec |
| 旋转角度Running degree | 180°（±5°）(when 700～2300 µsec) |
| 死区宽度Dead band width | 5 μsec |
| 旋转方向Rotating direction | Counterclockwise (when 1000~ 2000 μsec) |
| 详细规格书下载Download detailed specifications: | |

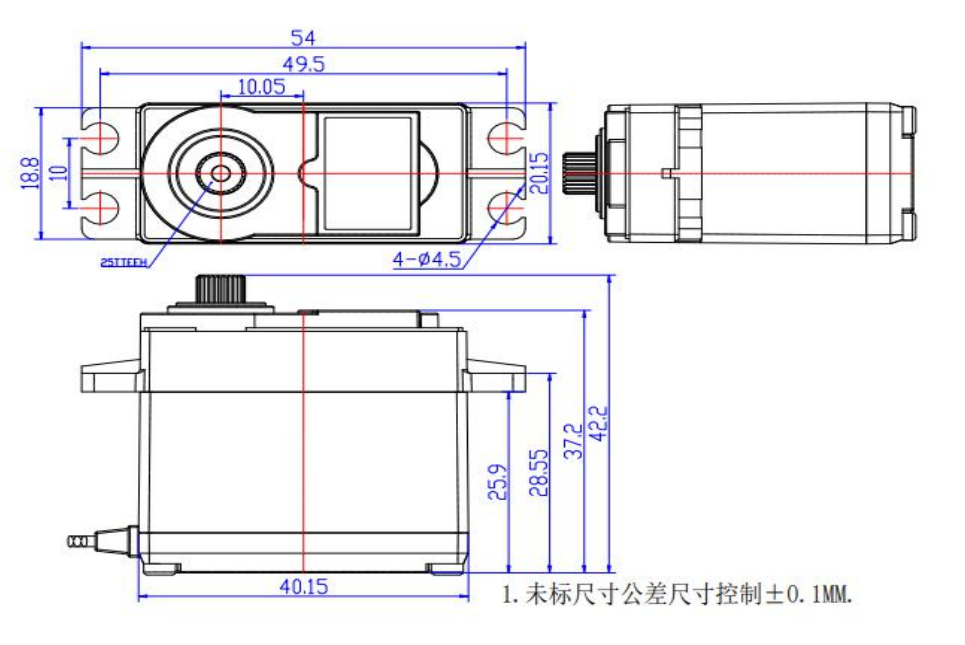

| 外形图 The Drawings: |
