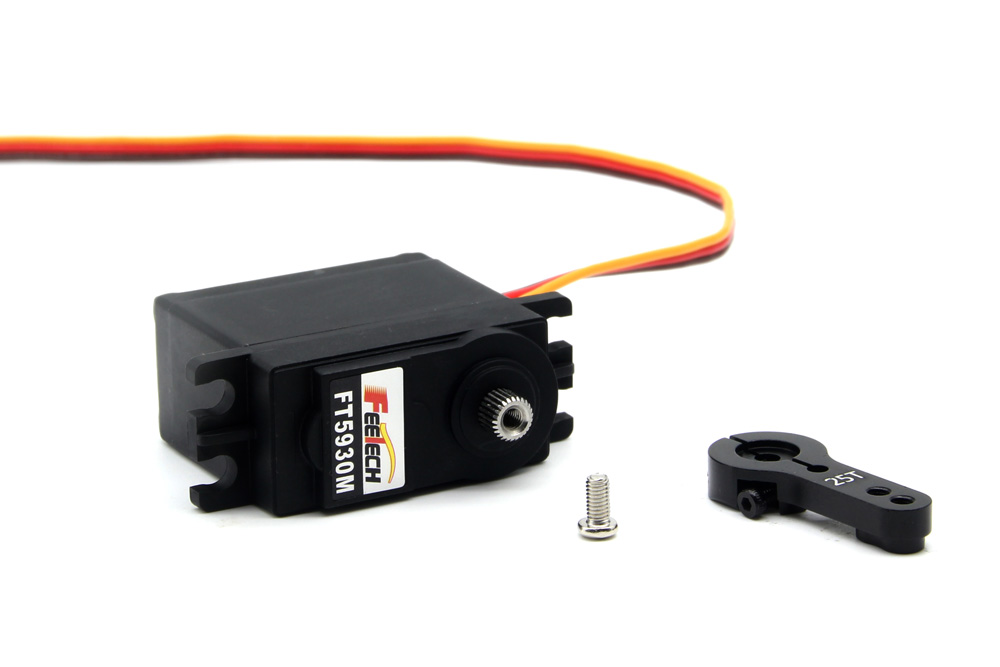

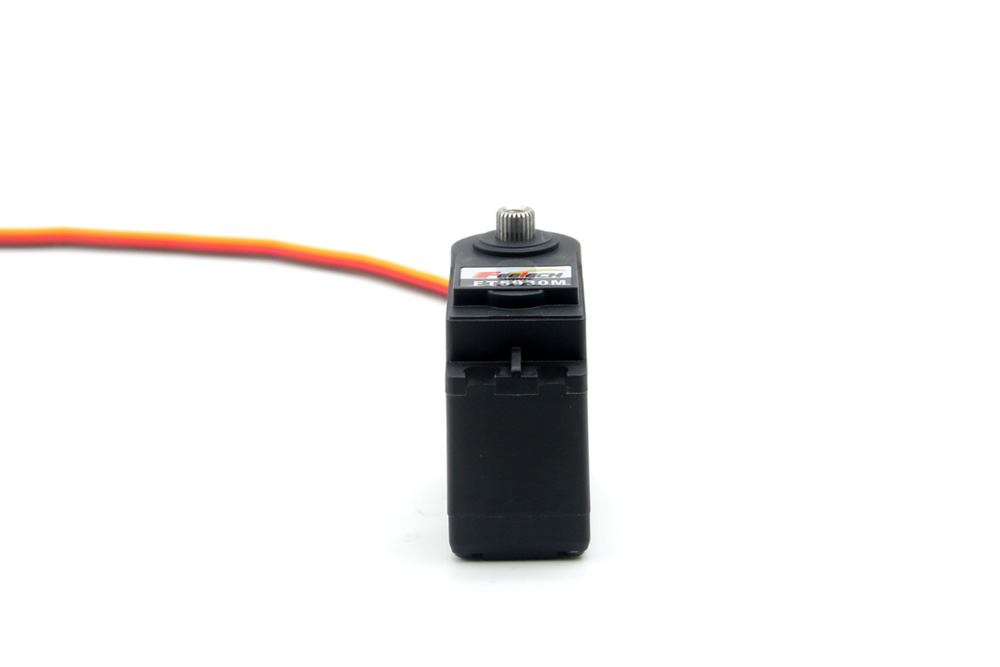

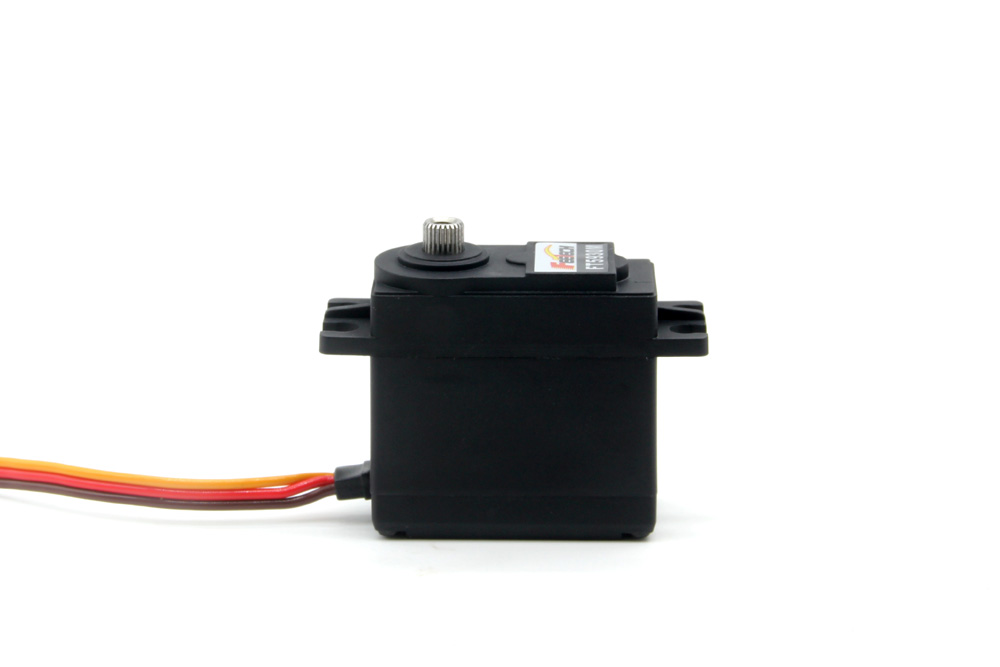

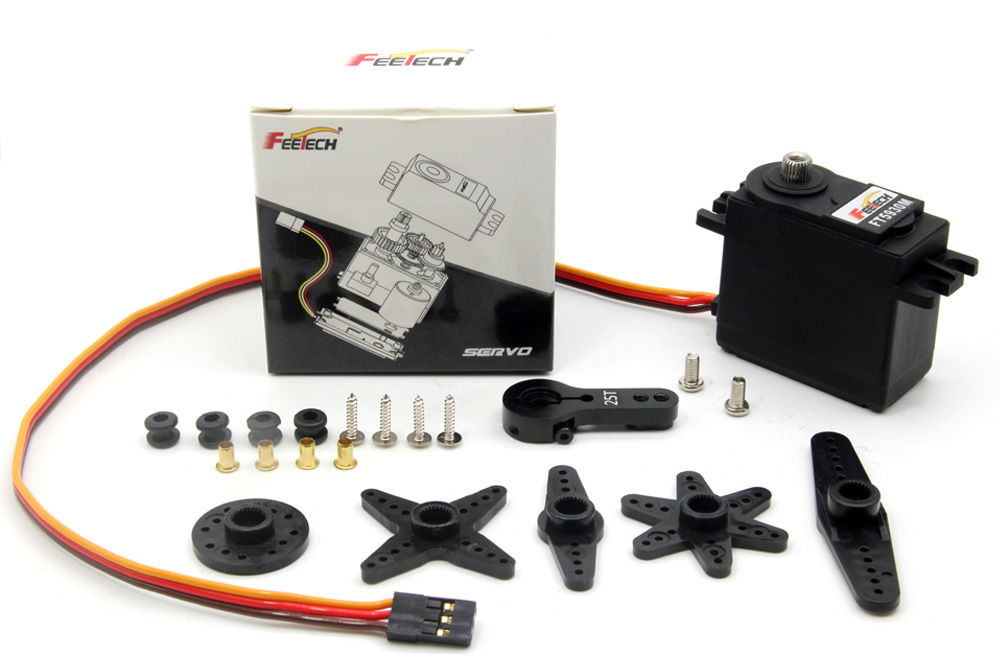

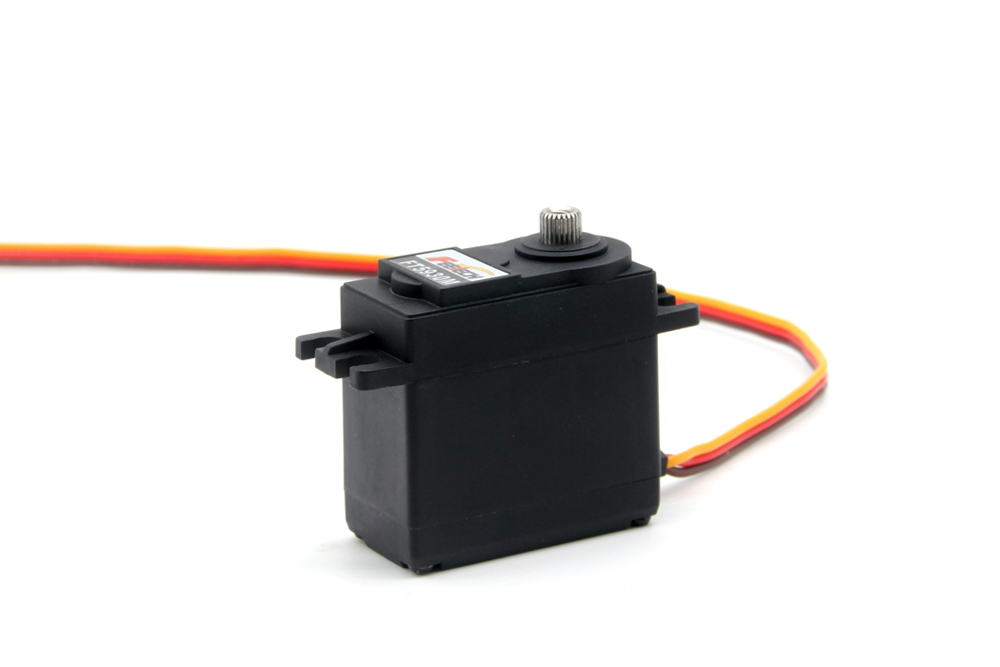

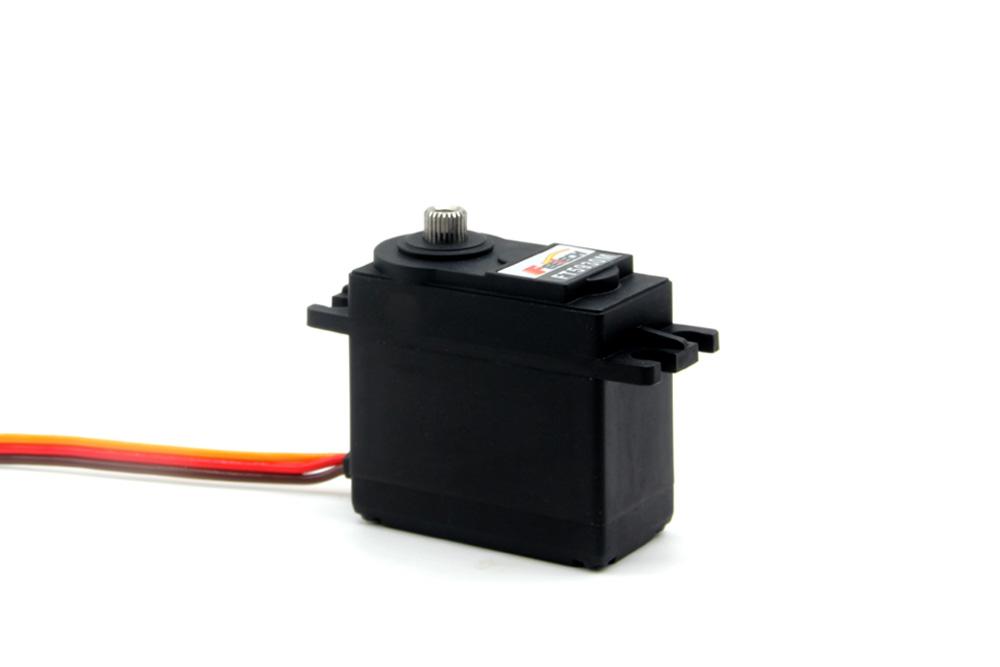

7.4V 35kg.cm Plastic Case 180° Metal Gear Coreless Servo

型 号 Model:

FT-5930-C001

产品名称 Product Name:

7.4V 30kg.cm180°舵机/7.4V 30KG 180 Degree Copper Gear Servo

存储温度 Storage Temperature Range -30℃~80℃
运行温度 Operating Temperature Range: -20℃~60℃

尺寸 Size:

A:40.1mm B:20.1mm C: 38.9mm

重量 Weight:

61± 1g

齿轮类型 Gear type:

钢 Steel

机构极限角度 Limit angle:

NO limit

轴承 Bearing: 滚珠轴承 Ball bearings
出力轴 Horn gear spline:

25T/5.9mm

减速比Gear Ratio: 1/300
外壳 Case: PA+Fiberglass
舵机线 Connector wire: 30±1CM
马达 Motor:

Coreless Motor

工作电压Operating Voltage Range:

4-9V

静态电流Idle current (atstopped)  20mA@8.4V

空载速度 No load speed:

0.1sec/60°(100RPM)@8.4V

空载电流 Runnig current(at no load) : 320mA@8.4V

堵转扭矩 Peak stall torque:

39.5kg.cm@8.4V

额定扭矩 Rated torque:

13.1kg.cm@8.4V

堵转电流 Stall current: 5.1A@8.4V
控制信号Command si gnal Pulse width modification
控制系统类型 Control System Type Digital comparator
脉冲宽度范围Pulse width range 500~2500 μ sec
中立位置Stop position 1500 μ sec
操作角度Running degree

 180°± 5°(at 500→2500μsec)

死区宽度Dead band width ≤4 μ sec
旋转方向Rotating direction 逆时针 Counterclockwi se (在1500→2000 μ sec)
详细规格书下载Download detailed specifications:

FT5930M-C001规格书7.4V板本-20240621.pdf

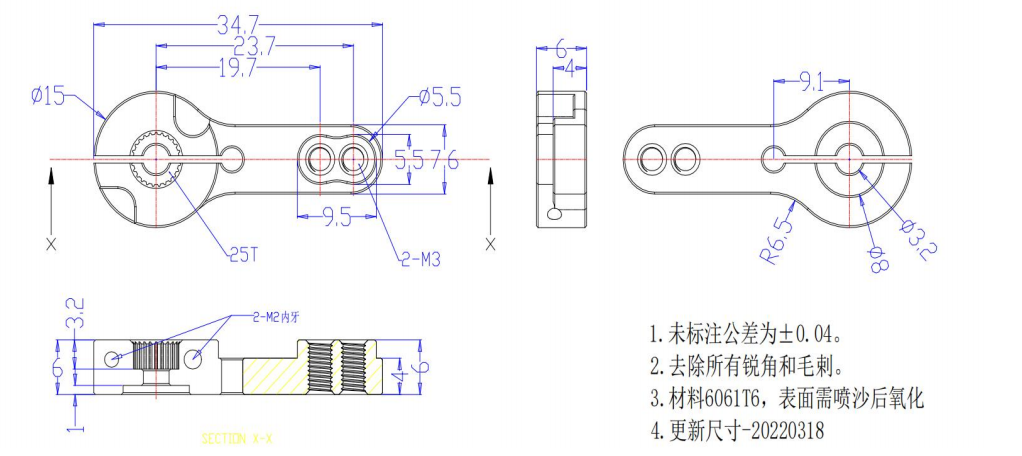

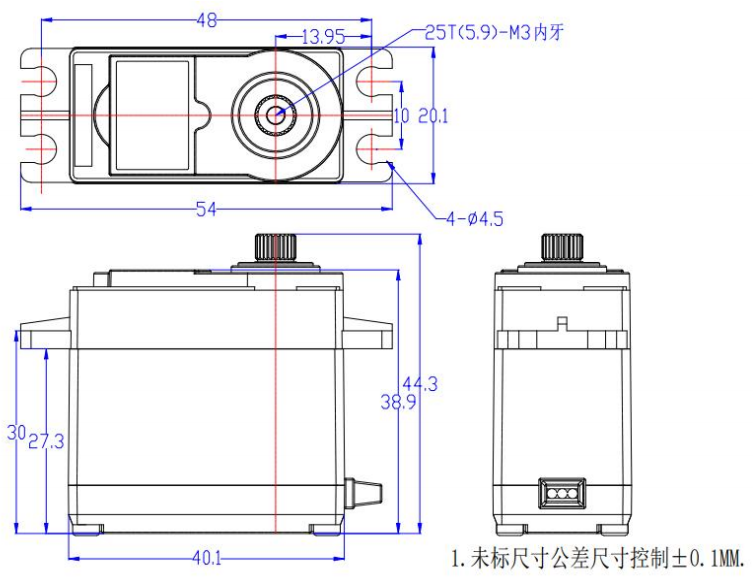

外形图 The Drawings:
