Feetech 2020 new product STS3215Magnetic Encoder 360°Serial bus Servo Evaluation

Time:2020-05-13    Views:1909

On April 6, 2020, Shenzhen Feetech RC Model Co., Ltd. released the new magnetic code version of TTL serial bus Servo in 2020. This servo is a magnetic coding version with higher performance based on scs215 potentiometer version. It not only has the high cost performance function of Feetech SM high-end series, but also has the low price of SCS series. It can be said that it is a highly competitive product in the education market for the servo industry. Let's evaluate the basic parameters, structure and electrical control characteristics of this servo.

SKUSTS3215
Product Name7.4V 19KG.CM Plastic Case Metal Gear Magnetic Encoder Double shaft TTL Serial Bus Servo

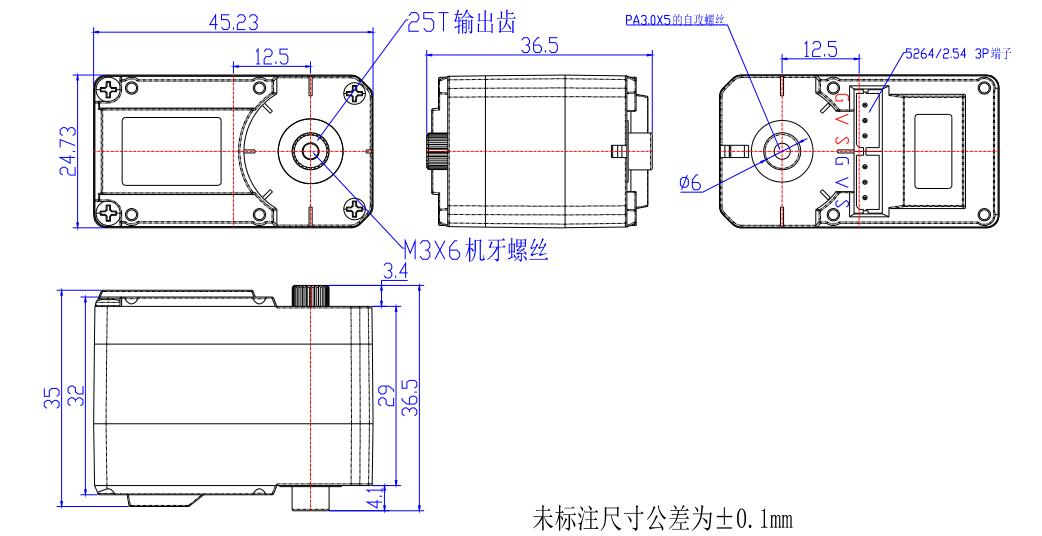

Appearance size45.2X24.7X35mmSee the blueprint

Stall Torque19.5kg.cm@7.4V

Stall Speed52RPM@7.4V

Feedback: load / position / speed / voltage / current / temperature

Electronic protection: overheat / overcurrent / overvoltage / overload protection

Structural Features:

The shell adopts engineering plastic shell with higher strengthOptimize the center distanceMore compact overall structureThe servo gear adopts 1:345 copper Gear combinationhigher torqueAt the same Torquecompare with the standrd servo sizeit looks lower profile5mm),The body adopts double axis structure designThe structural characteristics of the circle lined solidWiring mode of double outgoing cables with metal Principal deputy servo hornsIt is suitable for application in quadruped robot, snake robot, desktop robot, humanoid robot and mechanical arm.

Electronic control Function

1.Acceleration start stop function: speed and acceleration value can be set, motion effect is more gentle.

2.High precision, 360 degree absolute position 4096 bit precision, the highest position resolution is 0.088 degrees, if the control is 90 degrees, input 4096 / 360 * 90 = 1024, if the control is 180 degrees, input 4096 / 360 * 180 = 2048, so as to calculate.

3.There are four working mode switching (mode 0 position servo, mode 1 speed closed-loop, mode 2 speed open-loop, mode 3 step servo).
1)Mode 0Location mode, the default mode. In this mode, 360 degree absolute angle control can be realized. Support acceleration movement.
2)Mode 1Speed closed-loop, in the programming interface, the operation mode is set to 1, switch to speed closed-loop mode, and enter the corresponding speed in the speed column to run.
3)Mode 2Speed open-loop, in the programming interface, the operation mode is set to 2, switch to speed open-loop mode, and enter the corresponding time in the time column to run.
4)Mode3Step mode: in the programming interface, the maximum / minimum angle limit is set to 0, and the operation mode is set to 3. Switch to step mode. Enter the position in the position bar to step towards the target position. Click the position again to continue to step in the same direction.

4、
Multi turn mode, 360 degree absolute control and feedback, under the highest accuracy, the absolute position control can be plus or minus 7 turns, but the number of power cycles is not saved, only the absolute position feedback value is retained.

5、
One key calibration, 360 degree angle installation at any position, (40 (decimal) address input 128 (decimal)) one key correction current position is the middle (2048 (decimal)).

6、
TTL communication level, half duplex asynchronous communication, bus protocol support to adjust read and write parameters, and add synchronous read function (send an instruction to receive the read back instruction from each servo on the bus in turn.)

7Multiple protections, (overload, overcurrent, overvoltage, overheating, switch setting, condition parameter changing)
1)Overload protection: through position detection, during the movement from the starting position to the target position, when the current position is detected to be not the target position after encountering the blocking of obstacles, the unloading force lasts for 2S (20% of the default blocking force). Until a new command is triggered, Release protection
2)Overcurrent protection: through the set current value, check whether the current reaches the set current value. When it reaches the set current value, release the force (the default torque is 0). Until a new command is triggered, Release protection
3)Over voltage protection: detect the current voltage value. If it exceeds the set voltage value, the alarm will display over-voltage.
4)Overheat protection: detect the current motor temperature. If the temperature exceeds the set value, the alarm will display overheat.

8:Multiple feedback:
1)Load feedback: the current control output drives the voltage duty cycle of the motor, and the full scale is 1000 = 100% torque output.
2)Current feedback: The servo working current, 1 = 6.5mA
3)Voltage feedback: The servo working voltage,70=7V,0.1V
4)Temperature feedback: internal working temperature of current servo(measuring temperature)

5)Speed feedback: feedback the speed of current motor rotation, and the number of steps in unit time (per second)

9、Open PID parameters.


It is very difficult to find a comparable product with such a high cost performance Servo in the market. The domestic retail price is 99(tax free) and the oversea price is $15 US dollars. The price is quite attractive. The performance also has almost all the functional characteristics of SM high-end series. Feetech has been focusing on the research and development of servo for nearly ten years, and its deep-rooted technology has always been ahead of the industry. The launch of this product is a competition of research and development for the product innovation, optimization and upgrading of Tob market. It will test how engineers use better spare parts to innovate and optimize products. This must be a trend of product development that has not yet been opened, and it is also a very important resource integration method for the market to update and iterate products.
