型 号 Model： |
FS5106R |
|
产品名称 Product Name: |
6V 6公斤模拟连续转舵机/6V 6kg. cm Analog Continuous rotation Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：40.1mm B：20.15mm C：37.2mm |
|
重量 Weight: |
41.5± 1g |
| 齿轮类型 Gear type: | POM |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: | 25T/5.9mm |
| 摆臂 Horn type: | Plastic, POM |
| 外壳 Case: | PA+Fiber |
| 舵机线 Connector wire: | 30CM |
| 马达 Motor: | Coreless moto |
|
工作电压Operating Voltage Range: |
4-8.4V |
|
空载速度 No load speed: |
0.105sec/60°@6V |
| 空载电流 Runnig current(at no load) : | 350mA@6V |
|
堵转扭矩 Peak stall torque: |
6kg.cm@6V |
|
额定扭矩 Rated torque: |
2kg.cm@6V |
| 堵转电流 Stall current: | 1.1A@6V |
| 控制信号 Command Signal | Pulse width modification |
| 放大器类型Amplifier type | Analog comparator |
| 脉冲宽度范围Pulse width range | 1200~ 1800usec |
| 停止位置Stop position | 1500（±9） μsec |
| 旋转角度Running degree | 360°Continuous rotation |
| 死区宽度Dead band width | ≤18 μsec |
| 旋转方向Rotating direction | 逆时针 Counterclockwise(在1500 →1800 μsec) |
| 详细规格书下载Download detailed specifications: | |

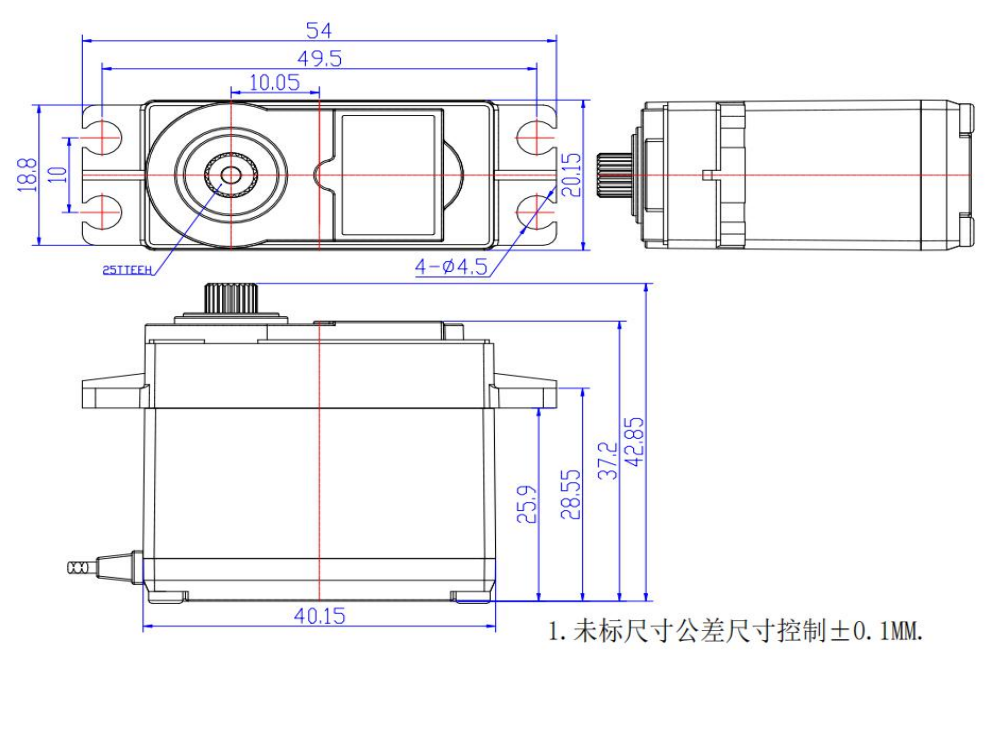

| 外形图 The Drawings: |
